WELDING PROTECTION · WELDING BLANKETS810.HT - High-Temperature Welding Blanket up to 800 °C
Lightweight and flexible welding blanket for large-area protection against sparks, weld spatter and heat at temperatures up to 800 °C.

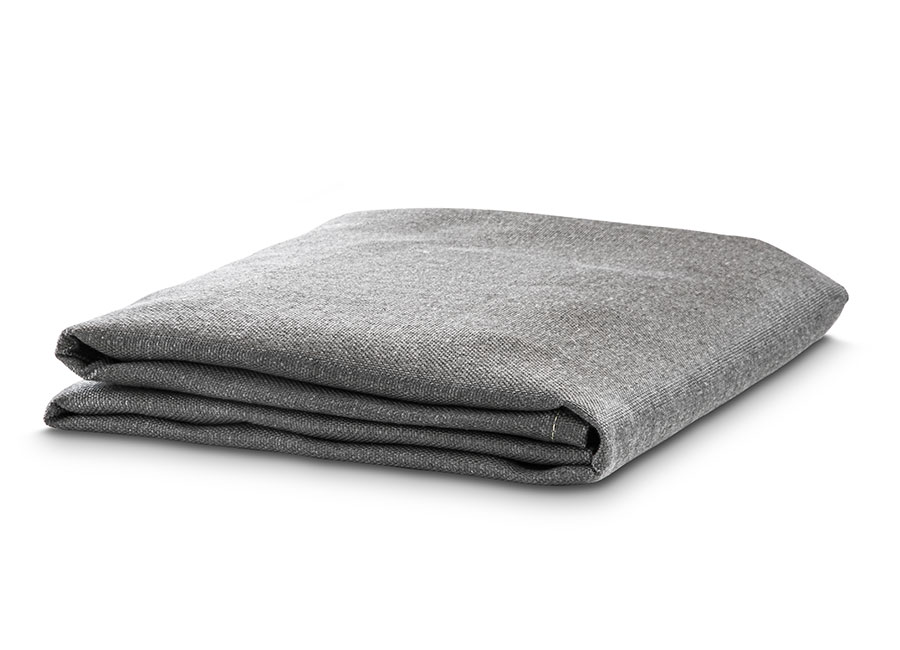

810.HT · HIGH-TEMPERATURE WELDING BLANKET UP TO 800 °C
Lightweight and Flexible High-Temperature Welding Blanket for Large-Area Protection
HIGH TEMPERATURE Basic
The 810.HT welding blanket is a lightweight and flexible high-temperature welding blanket for industrial welding, grinding and hot work. It has been developed for applications where sparks, weld spatter and elevated thermal loads must be reliably shielded while keeping the fabric weight as low as possible.
The 810.HT is based on a textured glass fabric with a double-sided calcium silicate HT finish. With a fabric weight of only approx. 660 g/m², the welding blanket combines lightweight, flexible handling with high temperature resistance up to 800 °C.
Thanks to its favourable combination of temperature resistance and fabric weight, the 810.HT is particularly suitable for large-area shielding and covering of machinery, equipment, components, floors and adjacent work areas, as well as for vertical and horizontal applications in industrial welding protection.
810.HT High-Temperature Welding Blanket – Technical Overview
- Base fabric
- GT Glass Fabric
- Finish
- Calcium silicate HT finish, double-sided
- Fabric weight
- approx. 660 g/m²
- Colour
- dark grey / anthracite
- Reaction to fire
- non-combustible
- Application
- For welding work with increased thermal exposure
- Temperature resistance
- up to 800 °C
- Performance level
- HIGH TEMPERATURE – Basic
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
810.HT as Roll Goods and Fabricated High-Temperature Welding Blankets
The 810.HT is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Its low fabric weight makes it particularly suitable for large-area welding protection applications. Custom dimensions can also be manufactured for project-specific requirements.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 50 linm | 660 g/m² | 208100-010-500 | |
| 1500 mm | 50 linm | 660 g/m² | 208100-015-500 | |
| 2000 mm | 50 linm | 660 g/m² | 208100-020-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 0,66 kg | 208101-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 1,32 kg | 208101-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 1,98 kg | 208101-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 2,64 kg | 208101-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 3,96 kg | 208101-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 5,28 kg | 208101-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 5,94 kg | 208101-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 7,92 kg | 208101-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 9,90 kg | 208101-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 10,56 kg | 208101-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 13,20 kg | 208101-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 15,84 kg | 208101-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 16,50 kg | 208101-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 19,80 kg | 208101-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 23,10 kg | 208101-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 23,76 kg | 208101-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 27,72 kg | 208101-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 31,68 kg | 208101-060-080 |
Lightweight High-Temperature Welding Protection for Large-Area Industrial Applications
Technical and functional features
-
Textured glass fabric for industrial welding and hot work
-
Double-sided calcium silicate HT finish for elevated thermal loads
-
Temperature resistant up to 800 °C
-
Only approx. 660 g/m² fabric weight for a lightweight and flexible construction
-
Resistant to sparks and weld spatter
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Metalworking and welding
-
Mechanical and plant engineering
-
Large-area covering of machinery and equipment
-
Maintenance and repair work
-
Protection of floors and sensitive surfaces
-
Construction and assembly work
-
Shipbuilding and offshore applications
-
Industrial hot work
The Right High-Temperature Welding Blanket for Your Application
Our specialists support you in selecting the appropriate welding blanket and dimensions for your thermal and application-specific requirements.
Personal advice on product, configuration and application concept.
