WELDING PROTECTION · WELDING BLANKETS607.G1 - Welding & Spark Protection Blanket up to 600 °C
Lightweight and flexible welding blanket for protecting large areas against sparks, weld spatter and thermal exposure.

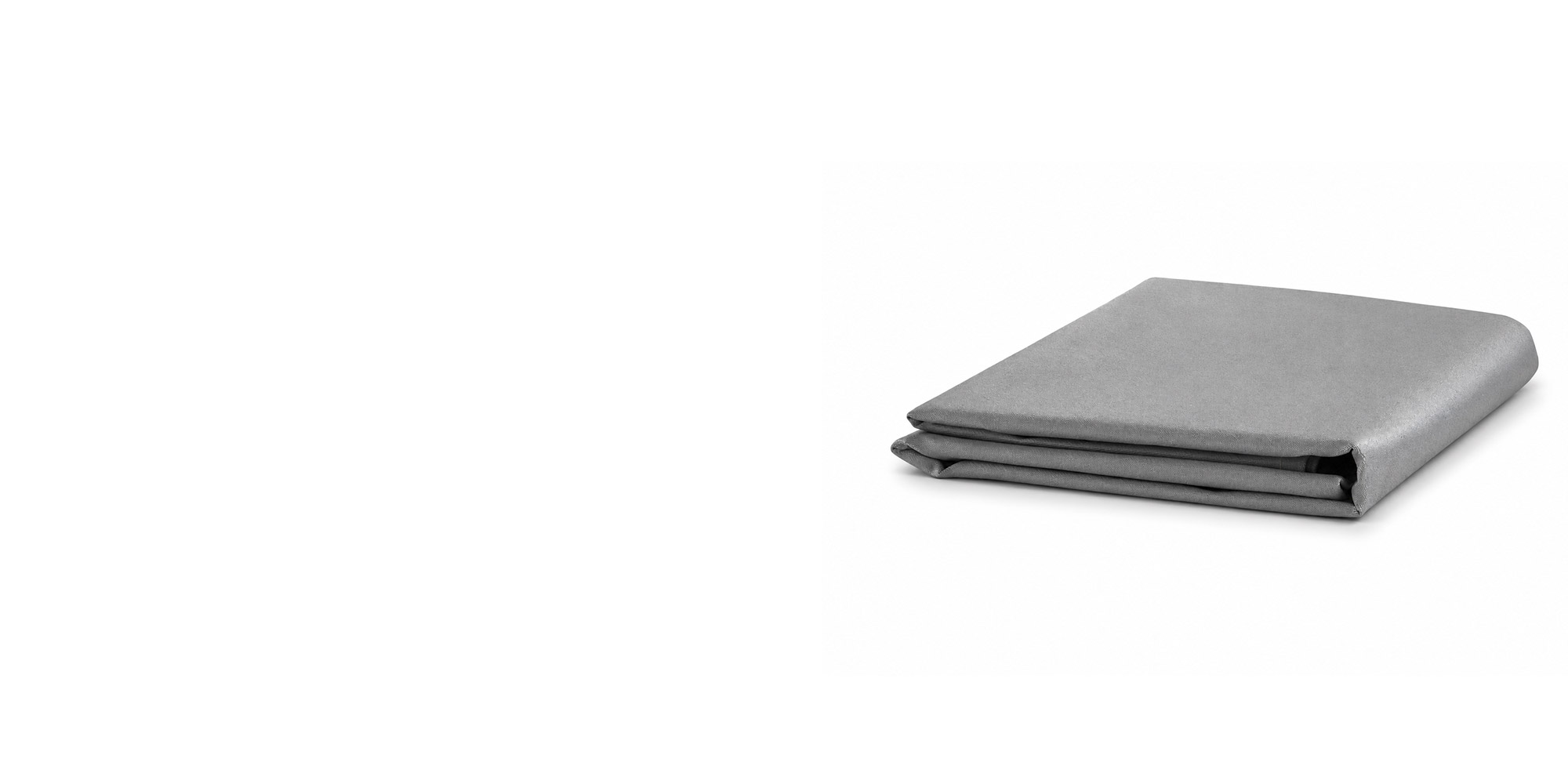

607.G1 · INDUSTRIAL WELDING BLANKET UP TO 600 °C
Lightweight Welding Blanket for Large-Area Protection During Welding and Hot Work
INDUSTRIAL Basic
The 607.G1 welding blanket is a lightweight and versatile spark protection and welding blanket for industrial welding, grinding and hot work. It is particularly suitable for applications where large areas need reliable protection against sparks, weld spatter and thermal exposure.
The 607.G1 is based on a GF glass fabric with a single-sided PU-Alufix coating. With a fabric weight of approx. 700 g/m², the welding blanket combines lightweight, flexible handling with temperature resistance up to 600 °C.
Thanks to its low fabric weight, the 607.G1 is particularly suitable for large-area covering and shielding of machinery, components, floors, scaffolding and adjacent work areas, making it a cost-effective basic solution for a wide range of industrial welding and hot-work applications.
607.G1 Welding Blanket – Technical Overview
- Base fabric
- GF Glass Fabric
- Coating
- PU-Alufix, single-sided
- Fabric weight
- approx. 700 g/m²
- Colour
- matt aluminium grey
- Reaction to fire
- non-combustible
- EN 13501-1
- A2-s1, d0
- Application
- For light welding and grinding work
- Temperature resistance
- up to 600 °C
- Performance level
- INDUSTRIAL – Basic
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
607.G1 as Roll Goods and Fabricated Welding Blankets
The 607.G1 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Its comparatively low fabric weight makes it particularly suitable for large-area covering. Custom dimensions can also be manufactured for project-specific requirements.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 25 linm | 700 g/m² | 206070-010-250 | |
| 1000 mm | 50 linm | 700 g/m² | 206070-010-500 | |
| 1250 mm | 50 linm | 700 g/m² | 206070-012-500 | |
| 1500 mm | 50 linm | 700 g/m² | 206070-015-500 | |
| 2000 mm | 50 linm | 700 g/m² | 206070-020-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 0,70 kg | 206071-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 1,40 kg | 206071-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 2,10 kg | 206071-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 2,80 kg | 206071-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 4,20 kg | 206071-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 5,60 kg | 206071-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 6,30 kg | 206071-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 8,40 kg | 206071-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 10,50 kg | 206071-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 11,20 kg | 206071-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 14,00 kg | 206071-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 16,80 kg | 206071-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 17,50 kg | 206071-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 21,00 kg | 206071-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 24,50 kg | 206071-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 25,20 kg | 206071-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 29,40 kg | 206071-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 33,60 kg | 206071-060-080 |
Lightweight and Flexible Welding Protection for Large-Area Applications
Technical and functional features
-
GF glass fabric for industrial welding and hot work
-
Single-sided PU-Alufix coating for increased durability
-
Temperature resistant up to 600 °C
-
Approx. 700 g/m² fabric weight for lightweight and flexible handling
-
Resistant to sparks and weld spatter
-
Particularly suitable for covering and shielding large areas
-
Available as roll goods and fabricated welding blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Metalworking and welding
-
Mechanical and plant engineering
-
Maintenance and repair work
-
Large-area covering of machinery and equipment
-
Shielding of adjacent work areas
-
Construction and assembly work
-
Scaffolding and temporary protection areas
-
Industrial hot work
