  • S-TYPE fire containment blanket for forklifts and industrial trucks
    FIRE PROTECTION · INTRALOGISTICS

    Fingerhuth Fire Containment Blankets for Forklifts & Industrial Trucks

    S-TYPE fire containment blanket for lithium-ion-powered forklifts, industrial trucks and industrial e-mobility.
DIN SPEC 91489
Material tested
up to 1200 °C
continuous temperature
up to 1600 °C
Short-term peak exposure
MADE IN GERMANY
development and manufacturing
← Back to overview

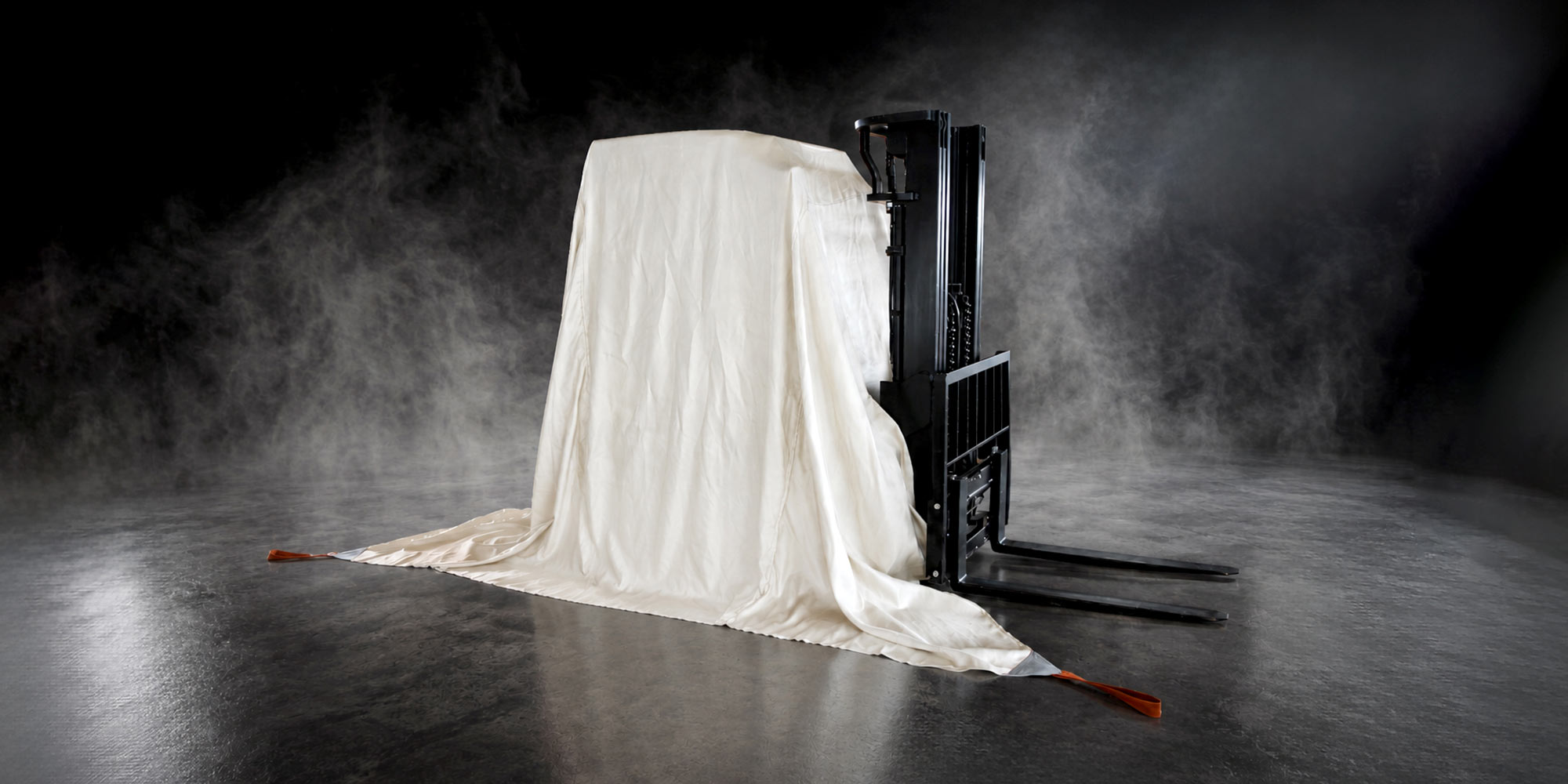

S-TYPE fire containment blanket for lithium-ion forklifts and industrial trucks
S-TYPE fire containment blanket in industrial use
S-TYPE fire containment blanket in transport trolley

FIRE CONTAINMENT FOR BATTERY FIRES IN INTRALOGISTICS

When a lithium-ion forklift catches fire, the surrounding area can quickly be affected.

Lithium-ion-powered forklifts, industrial trucks, pallet trucks, stackers, automated guided vehicles (AGVs) and autonomous mobile systems have become an integral part of modern production and intralogistics. If a thermal runaway occurs within the traction battery, extreme temperatures, intense flames and large volumes of hot reaction gases can develop within a very short time.

Warehouses, production facilities and logistics areas often contain other vehicles, machinery, racking systems, goods or building structures in close proximity. A fire containment blanket for forklifts and industrial trucks creates a defined containment zone around the affected vehicle, limits the spread of flames and reduces thermal exposure to the surrounding area.

The primary objective is explicitly not to “smother” the battery fire, but to provide fire containment, protection of the surrounding area and spatial control of the fire event until further measures can be initiated.

S-TYPE fire containment blanket for forklifts and industrial trucks

S-TYPE · FIRE CONTAINMENT FOR FORKLIFTS & INDUSTRIAL TRUCKS

Engineered for high thermal loads from industrial lithium-ion vehicles

The S-TYPE fire containment blanket for industrial trucks has been developed for the specific challenges associated with fires involving forklifts, industrial trucks and other electrically powered industrial vehicles. In intralogistics in particular, lithium-ion traction batteries can generate extremely high temperatures and intense flames in the event of a failure.

The high-temperature material consists of silica fabric with a mineral vermiculite coating on both sides. It provides continuous temperature resistance up to 1,200 °C and short-term peak resistance up to 1,600 °C.

The open-pore material structure allows smoke, pyrolysis and reaction gases to pass through the fabric, thereby reducing the risk of a critical accumulation of combustible gases beneath the fire containment blanket.

At the same time, the S-TYPE material is water-permeable, allowing supplementary use of extinguishing or sprinkler water for cooling the blanket, accessible vehicle surfaces and the immediate surroundings.

The S-TYPE therefore combines high thermal resistance with the requirements of professional fire containment for lithium-ion forklifts and industrial trucks.

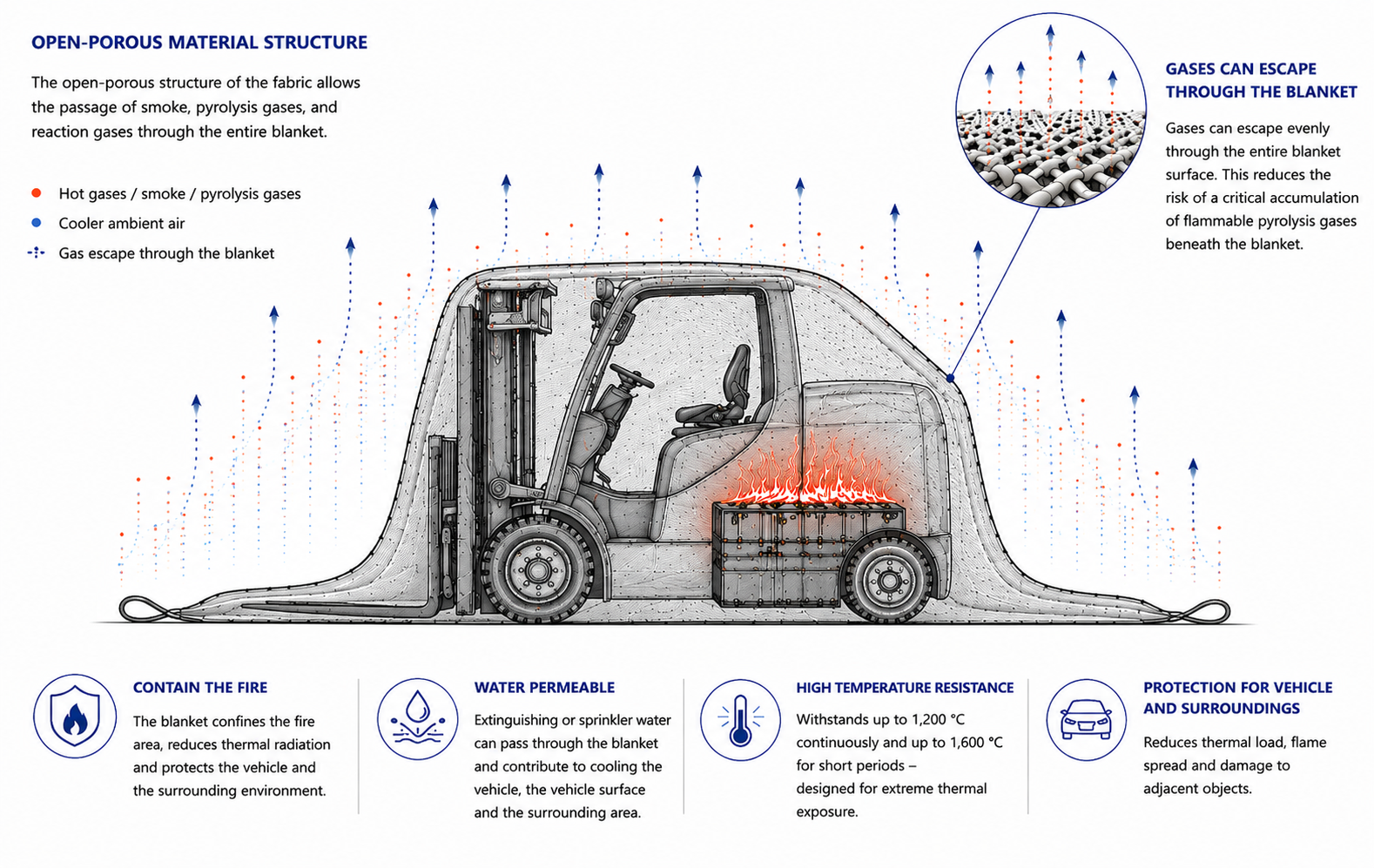

S-TYPE fire containment blanket for forklifts – gas management and material structure

FUNCTION · S-TYPE FIRE CONTAINMENT BLANKET FOR INDUSTRIAL TRUCKS

Open-pore material structure for controlled gas management

During a battery fire involving a forklift or industrial truck, large volumes of smoke, pyrolysis and reaction gases are generated in addition to high temperatures and flames. The open-pore fabric structure of the S-TYPE allows these gases to escape through the surface of the fire containment blanket.

Gas permeability is an inherent design characteristic of the high-temperature fabric. Gases can pass through the fabric structure, reducing the risk of a critical accumulation of combustible pyrolysis gases beneath the fire containment blanket.

At the same time, this counteracts excessive inflation of the blanket caused by hot gases accumulating underneath it. This so-called ballooning effect is reduced by gas passage across the blanket surface, helping the fire containment blanket remain as close to the vehicle as possible during the fire event.

TECHNICAL DATA · S-TYPE FIRE CONTAINMENT BLANKET FOR INDUSTRIAL TRUCKS

S-TYPE fire containment blanket for forklifts – technical overview

Hochtemperaturbeständige Materialien, robuste Konfektion und auf industrielle Fahrzeugabmessungen abgestimmte Ausführungen bilden die technische Grundlage der S-TYPE FFZ Brandbegrenzungsdecke.

MATERIAL & TEMPERATURE DATA
Base fabric
High-temperature-resistant silica fabric
Coating
Vermiculite, both sides
Area weight
approx. 620 g/m²
continuous temperature
up to 1,200 °C
Short-term peak exposure
up to 1,600 °C
Material structure
Open-pore and gas-permeable
Water permeability
Yes
PFAS-free
Yes
REACH compliant
Yes
Reaction to fire
Non-combustible
CONSTRUCTION & SAFETY
Fabrication
Multi-panel high-temperature fabrication
Seam construction
Double-covered fire-protection seams
Sewing thread
High-temperature-resistant steel-Kevlar® thread
Handling loops
4 reinforced handling loops at the corners
Corner areas
Mechanically reinforced corner construction
Positioning marks
Central markings for alignment on the vehicle
Electrical properties
Electrically non-conductive
Applications
Forklifts, industrial trucks, AGVs and automated transport systems
development and manufacturing
100% Made in Germany
DIN SPEC 91489 S-TYPE material system tested
DIN EN 13501-1 tested reaction-to-fire performance
DIN 54345-1 tested electrostatic properties
STANDARD SIZES · S-TYPE FIRE CONTAINMENT BLANKET FOR INDUSTRIAL TRUCKS

The right fire containment blanket for different forklifts and industrial trucks

The S-TYPE fire containment blanket for industrial trucks is available in several standard sizes for different vehicle dimensions and industrial applications. From compact electric pallet trucks and small industrial trucks to larger forklifts and special-purpose vehicles, a graduated range of sizes is available.

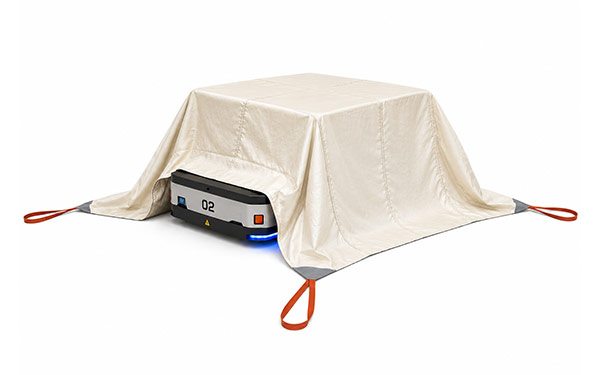

S-TYPE 3 x 3 m fire containment blanket for small industrial trucks
3 x 3 m

Compact industrial trucks

Compact version for smaller electrically powered industrial trucks and comparable industrial vehicles.
Area 9.0 m²
Vehicle class Compact / small
Available accessories Trolley L
Request this size →
S-TYPE 4.5 x 4.5 m fire containment blanket for forklifts
4.5 x 4.5 m

Electric pallet trucks & smaller forklifts

Medium-size version for electric pallet trucks, stackers and compact forklifts.
Area 20.25 m²
Vehicle class Small / medium
Available accessories Trolley L
Request this size →
S-TYPE 6 x 6 m fire containment blanket for forklifts and industrial trucks
6 x 6 m

Standard forklifts & industrial trucks

Versatile standard size for common electric forklifts and industrial trucks in warehouses and production facilities.
Area 36.0 m²
Vehicle class Medium
Available accessories Trolley XL
Request this size →
S-TYPE 7.5 x 7.5 m fire containment blanket for large forklifts
7.5 x 7.5 m

Large forklifts & special-purpose vehicles

Large-format version for larger forklifts, industrial trucks and special-purpose industrial vehicles.
Area 56.25 m²
Vehicle class Large
Available accessories Trolley XL
Request this size →
S-TYPE 9 x 9 m fire containment blanket for large industrial trucks and industrial vehicles
9 x 9 m

Large industrial vehicles & special applications

Extra-large version for large industrial trucks, industrial vehicles and special applications.
Area 81.0 m²
Vehicle class Very large
Available accessories Trolley XL
Request this size →
Which size is right for your forklift or industrial truck?

The optimum size depends on the vehicle dimensions, vehicle height, vehicle class and local operating conditions. Special dimensions and customer-specific versions can be manufactured individually on request.

FEATURES · APPLICATIONS

Fire containment for forklifts, industrial trucks and industrial e-mobility

The S-TYPE combines high thermal resistance with robust high-temperature fabrication and a material structure designed for industrial lithium-ion vehicles. It is suitable for environments where spatial containment of a vehicle or battery fire and the protection of people, goods, equipment and building structures are the primary objectives.

Technical and functional features

  • High-temperature-resistant silica fabric with mineral vermiculite coating on both sides
  • Continuous temperature resistance up to 1,200 °C and short-term peak exposure up to 1,600 °C
  • S-TYPE material system tested in accordance with DIN SPEC 91489
  • Open-pore and gas-permeable material structure allowing smoke, pyrolysis and reaction gases to pass through the blanket surface
  • Reduced risk of significant gas accumulation and a pronounced ballooning effect beneath the fire containment blanket
  • Water-permeable construction for supplementary cooling of the blanket, accessible vehicle surfaces and the immediate surroundings
  • Robust high-temperature fabrication with double-covered fire-protection seams and reinforced corner areas
  • Electrically non-conductive material design for professional use in intralogistics

Typical applications

  • Electric forklifts with lithium-ion traction batteries
  • Electric pallet trucks and stackers
  • Industrial trucks and special-purpose industrial vehicles
  • AGV and automated transport systems in automated logistics areas
  • Warehouses, high-bay warehouses and logistics centres
  • Production, assembly and intralogistics areas
  • Charging, maintenance and service areas for lithium-ion vehicles
  • Quarantine, safety and parking areas for damaged or abnormal industrial vehicles
CONSULTATION · QUOTATION

The right fire containment blanket for your forklift or industrial truck

Our specialists support you in selecting the appropriate S-TYPE version, the right dimensions and the optimum deployment solution for warehouses, production facilities, logistics areas or charging zones.

DIRECT CONTACT
Phone +49 (0) 2636 970-227
E-Mail info@heatprotection.de

Personal advice on product, configuration and application concept.
