WELDING PROTECTION · WELDING BLANKETS1608.VC2 - Silica Welding Blanket up to 1600 °C
Lightweight high-temperature welding blanket made from SiO2 silica fabric for extreme thermal loads in industrial and plant engineering applications.

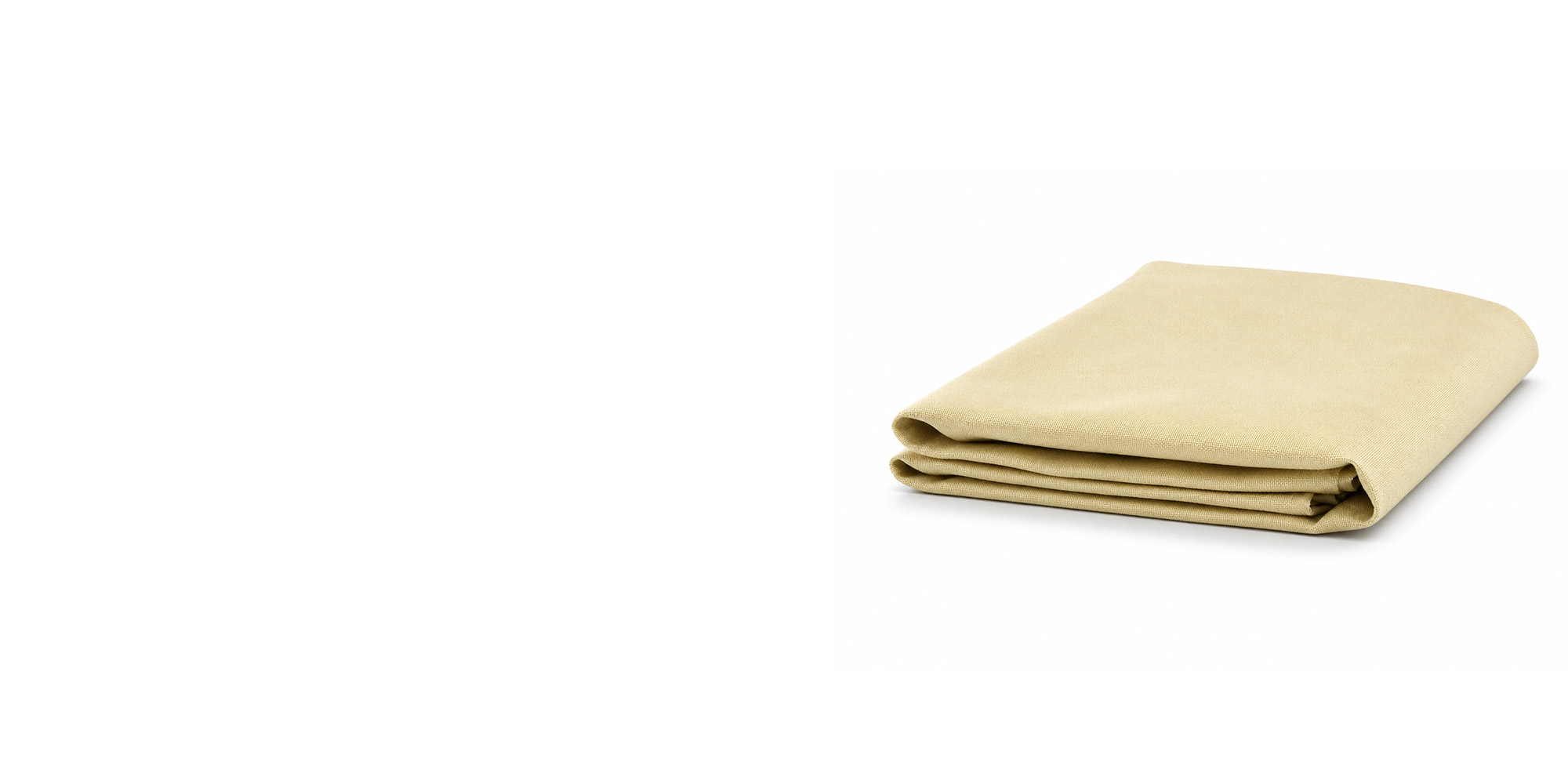

1608.VC2 · EXTREME HEAT SILICA WELDING BLANKET UP TO 1600 °C
Lightweight Silica Welding Blanket for Extreme Thermal Loads
EXTREME HEAT Basic
The 1608.VC2 silica welding blanket is a lightweight high-temperature welding blanket for extreme thermal loads during industrial welding, cutting and hot work. It combines exceptionally high temperature resistance with a low fabric weight, making it particularly suitable for large-area protection applications.
The 1608.VC2 is based on a high-purity SiO2 silica fabric with a double-sided vermiculite coating. The silica fabric provides significantly higher temperature resistance than conventional E-glass and is suitable for use at temperatures up to 1,200 °C and short-term exposure up to 1,600 °C. Despite this extreme thermal performance, the fabric weight is only approx. 620 g/m².
The 1608.VC2 provides reliable protection against sparks, hot weld spatter, flames and molten metal splashes. It is suitable for vertical and horizontal applications as well as large-area shielding of machinery, equipment, components and work areas in particularly high-temperature industrial environments.
1608.VC2 Silica Welding Blanket – Technical Overview
- Base fabric
- SiO2 silica fabric
- Coating
- Vermiculite, double-sided
- Fabric weight
- approx. 620 g/m²
- Colour
- gold-brown
- Reaction to fire
- non-combustible
- EN 13501-1
- A1
- Application
- For welding work with extreme thermal exposure
- Temperature resistance
- up to 1200 °C / short-term up to 1600 °C
- Performance level
- EXTREME HEAT – Basic
- FM Approved
- Tested and approved by FM Global
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
1608.VC2 as Roll Goods and Fabricated Silica Welding Blankets
The 1608.VC2 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Thanks to its low fabric weight, the silica welding blanket is particularly suitable for large-area high-temperature applications as well as vertical and horizontal protection areas. Custom dimensions can also be manufactured for project-specific requirements.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 930 mm | 50 linm | 620 g/m² | 216080-009-500 | |
| 1525 mm | 50 linm | 620 g/m² | 216080-015-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 900 × 1.000 mm | 0,90 m² | 0,56 kg | 216081-009-010 | |
| 900 × 2.000 mm | 1,80 m² | 1,12 kg | 216081-009-020 | |
| 900 × 3.000 mm | 2,70 m² | 1,67 kg | 216081-009-030 | |
| 900 × 4.000 mm | 3,60 m² | 2,23 kg | 216081-009-040 | |
| 900 × 5.000 mm | 4,50 m² | 2,79 kg | 216081-009-050 | |
| 1.000 × 1.500 mm | 1,50 m² | 0,93 kg | 216081-010-015 | |
| 1.500 × 1.500 mm | 2,25 m² | 1,40 kg | 216081-015-015 | |
| 1.500 × 2.000 mm | 3,00 m² | 1,86 kg | 216081-015-020 | |
| 1.500 × 3.000 mm | 4,50 m² | 2,79 kg | 216081-015-030 | |
| 1.500 × 4.000 mm | 6,00 m² | 3,72 kg | 216081-015-040 | |
| 1.500 × 5.000 mm | 7,50 m² | 4,65 kg | 216081-015-050 | |
| 3.000 × 3.000 mm | 9,00 m² | 5,58 kg | 216081-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 7,44 kg | 216081-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 9,30 kg | 216081-030-050 | |
| 3.000 × 6.000 mm | 18,00 m² | 11,16 kg | 216081-030-060 | |
| 4.500 × 5.000 mm | 22,50 m² | 13,95 kg | 216081-045-050 | |
| 4.500 × 6.000 mm | 27,00 m² | 16,74 kg | 216081-045-060 | |
| 4.500 × 7.000 mm | 31,50 m² | 19,53 kg | 216081-045-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 22,32 kg | 216081-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 26,04 kg | 216081-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 29,76 kg | 216081-060-080 |
Extreme Temperature Resistance with an Exceptionally Low Fabric Weight
Technical and functional features
-
High-purity SiO2 silica fabric for extreme industrial temperature ranges
-
Double-sided vermiculite coating for increased thermal resistance
-
Temperature resistant up to 1,200 °C and short-term up to 1,600 °C
-
Only approx. 620 g/m² fabric weight for a lightweight EXTREME HEAT construction
-
FM Approved and tested according to DIN EN 13501-1
-
Resistant to sparks, weld spatter, flames and molten metal splashes
-
Good chemical resistance for demanding industrial environments
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding blankets
Typical applications
-
Metalworking and high-temperature welding
-
Shipbuilding and shipyards
-
Mechanical and plant engineering
-
Chemical and petrochemical industry
-
Refineries and power plants
-
Foundries and metallurgical operations
-
Protection of machinery, equipment and components
-
Industrial hot work
The Right Silica Welding Blanket for Extreme Temperatures
Our specialists support you in selecting the appropriate high-temperature welding blanket and the right dimensions for your thermal and application-specific requirements.
Personal advice on product, configuration and application concept.
