WELDING PROTECTION · WELDING BLANKETS620.G2 - Heavy-Duty Welding Blanket up to 600 °C
Highly robust welding blanket for demanding industrial applications at temperatures up to 600 °C.

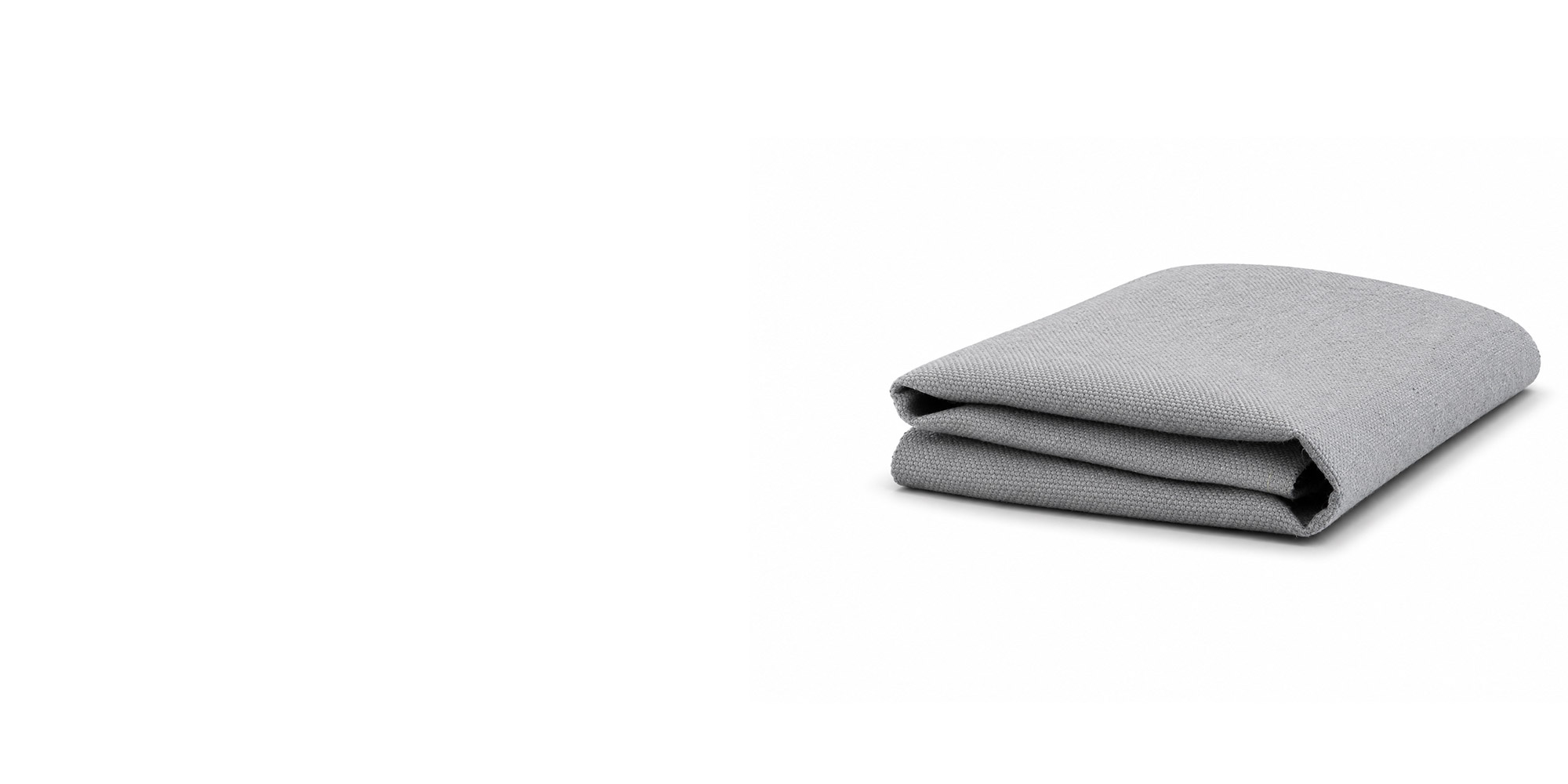

620.G2 · HEAVY-DUTY WELDING BLANKET UP TO 600 °C
Robust Welding Blanket for High Mechanical Loads During Welding and Hot Work
INDUSTRIAL Heavy Duty
The 620.G2 welding blanket is a heavy and particularly robust spark protection and welding blanket for industrial welding, grinding and hot work. It has been developed for applications where, in addition to sparks, weld spatter and thermal exposure, the protective material may also be subjected to high mechanical loads.
The 620.G2 is based on a heavy textured glass fabric with a double-sided PU-Alufix coating. With a fabric weight of approx. 1,150 g/m², the welding blanket provides a durable heavy-duty construction and is designed for application temperatures up to 600 °C.
The 620.G2 is therefore particularly suitable for shielding and covering machinery, components, floors and adjacent work areas during demanding welding and hot work in industrial environments.
620.G2 Welding Blanket – Technical Overview
- Base fabric
- GT Glass Fabric
- Coating
- PU-Alufix, double-sided
- Fabric weight
- approx. 1,150 g/m²
- Colour
- matt aluminium grey
- Reaction to fire
- non-combustible
- Application
- For welding and grinding work with increased mechanical demands
- Temperature resistance
- up to 600 °C
- Performance level
- INDUSTRIAL – Heavy Duty
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
620.G2 as Roll Goods and Fabricated Welding Blankets
The 620.G2 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Custom dimensions can also be manufactured for project-specific requirements.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 50 linm | 1150 g/m² | 206200-010-500 | |
| 1500 mm | 50 linm | 1150 g/m² | 206200-015-500 | |
| 2000 mm | 50 linm | 1150 g/m² | 206200-020-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 1,15 kg | 206201-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 2,30 kg | 206201-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 3,45 kg | 206201-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 4,60 kg | 206201-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 6,90 kg | 206201-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 9,20 kg | 206201-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 10,35 kg | 206201-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 13,80 kg | 206201-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 17,25 kg | 206201-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 18,40 kg | 206201-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 23,00 kg | 206201-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 27,60 kg | 206201-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 28,75 kg | 206201-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 34,50 kg | 206201-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 40,25 kg | 206201-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 41,40 kg | 206201-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 48,30 kg | 206201-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 55,20 kg | 206201-060-080 |
Heavy-Duty Welding Protection for High Mechanical Loads
Technical and functional features
-
Heavy textured glass fabric for robust industrial applications
-
Double-sided PU-Alufix coating for increased mechanical durability
-
Temperature resistant up to 600 °C
-
Approx. 1,150 g/m² fabric weight for a heavy-duty construction
-
Resistant to sparks and weld spatter
-
Available as roll goods and fabricated welding blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Metalworking and welding
-
Mechanical and plant engineering
-
Maintenance and repair work
-
Protection of machinery and equipment
-
Covering of adjacent work areas
-
Construction and assembly work
-
Shipbuilding and offshore applications
-
Industrial hot work
The Right Welding Blanket for Your Application
Our specialists support you in selecting the appropriate welding blanket and the right dimensions for your application.
Personal advice on product, configuration and application concept.
