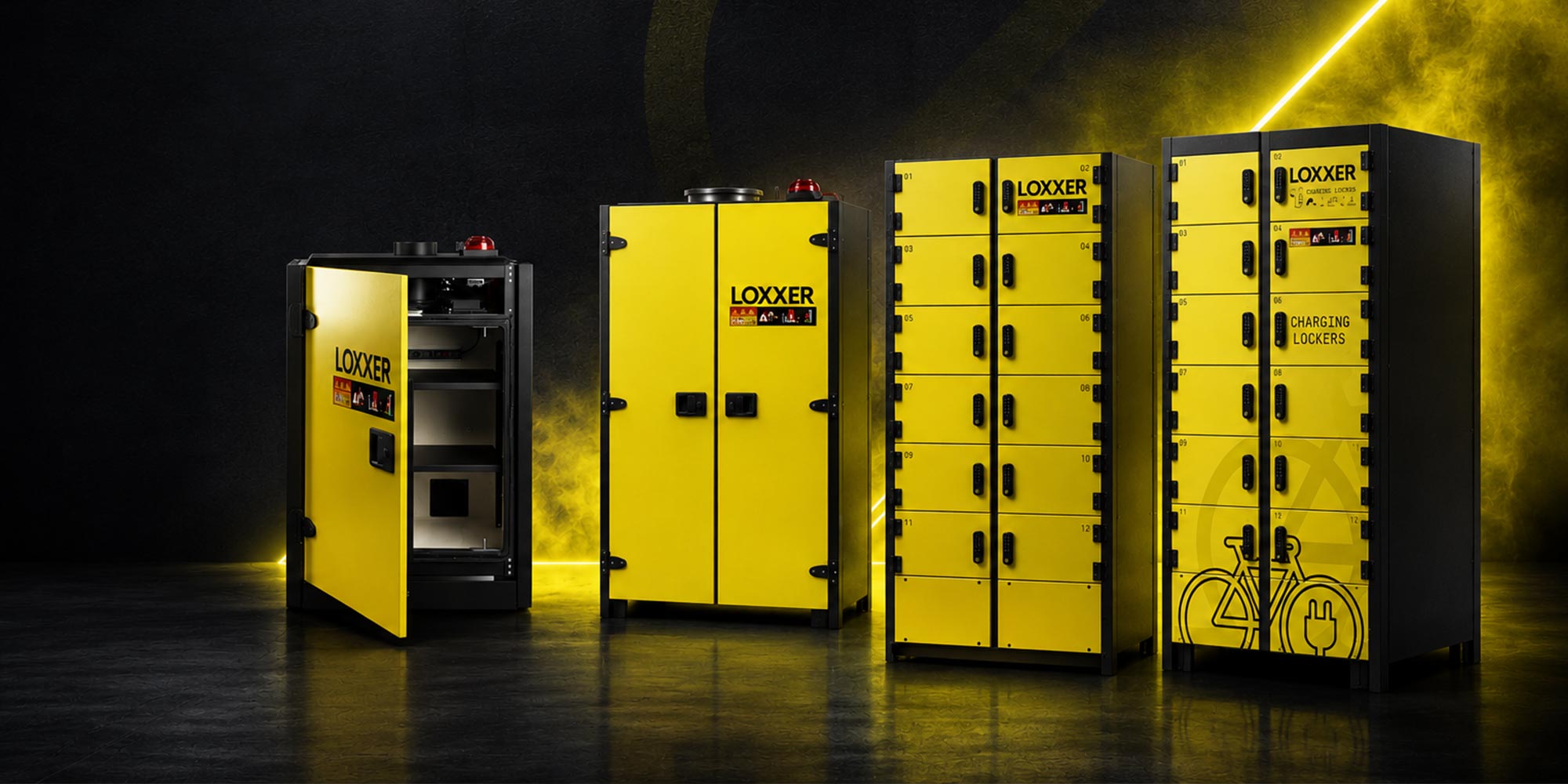

Lithium-Ion Battery Storage & Charging Cabinets

A professional battery cabinet provides a defined, organised and monitored storage and charging area. Batteries and chargers are kept together in one controlled location, while integrated smoke and temperature detection can help identify critical conditions at an early stage. The cabinet should always be considered as one component of the overall operational safety concept.

The LOXK1100 is particularly suitable for smaller workshops, service departments and compact battery pools. The LOXK2000 offers significantly more capacity and charging points for larger professional battery inventories. The LOX12 is designed for applications where multiple users each require an individually lockable charging compartment.

The LOXK1100 and LOXK2000 are certified to VDMA 24994. The LOX12 is offered as a separate multi-user charging locker system; this page does not state VDMA 24994 certification for that model.

VDMA 24994 defines a test concept for battery safety cabinets in which the complete system is evaluated under the stresses of a lithium-ion battery event. This includes, among other factors, the structural integrity of the cabinet and the thermal impact outside the system. Certification therefore provides a documented technical basis for operational product selection.

The systems are intended primarily for small and medium-sized lithium-ion batteries such as e-bike and e-scooter batteries, power-tool batteries, scanner and radio batteries, drone batteries and comparable mobile energy storage systems. Large forklift traction batteries or industrial high-voltage battery packs are not within the intended application range of LOXK1100 and LOXK2000.

Yes. LOXXER systems feature smoke and temperature detection for monitoring the cabinet interior. Depending on the model, a detected critical condition triggers an optical and acoustic alarm.

LOXK1100 and LOX12 are prepared for connection to an external fire alarm control system, while the LOXK2000 provides a corresponding connection option. The exact integration depends on the existing fire alarm system and site-specific configuration and should be coordinated accordingly.

Depending on the model, an optional aerosol fire suppression system is available. This provides an additional safety function. The appropriate configuration and suitability should be defined as part of the respective operational and fire protection concept.

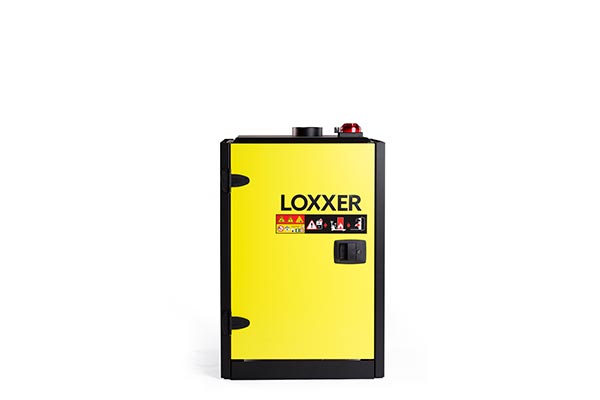

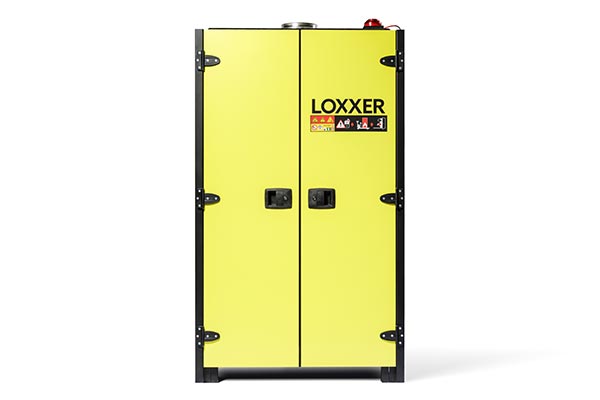

The LOXK1100 is the compact single-door solution with two adjustable shelves and 230-V power supply. The LOXK2000 is designed for higher capacity and provides four adjustable shelves and up to 32 sockets. Both models are certified to VDMA 24994.

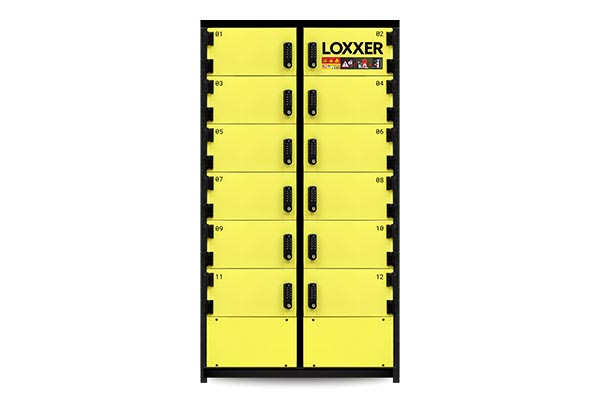

The LOX12 is particularly suitable for companies and facilities where multiple users need to charge and store their batteries at the same time, but separately from one another. Twelve individually lockable compartments, each with two 230-V sockets, allow clear allocation to employees, departments or user groups.

Typical applications include industry, workshops, e-bike retail, logistics centres, facility management, municipal operations, schools, universities and corporate sites with workplace e-mobility schemes. The relevant spatial, electrical and fire-safety conditions must always be considered when planning the installation.
