WELDING PROTECTION · WELDING BLANKETS1100.HT - Heavy-Duty Welding Blanket up to 1100 °C
Robust high-temperature welding blanket for high thermal and mechanical loads in demanding industrial applications.

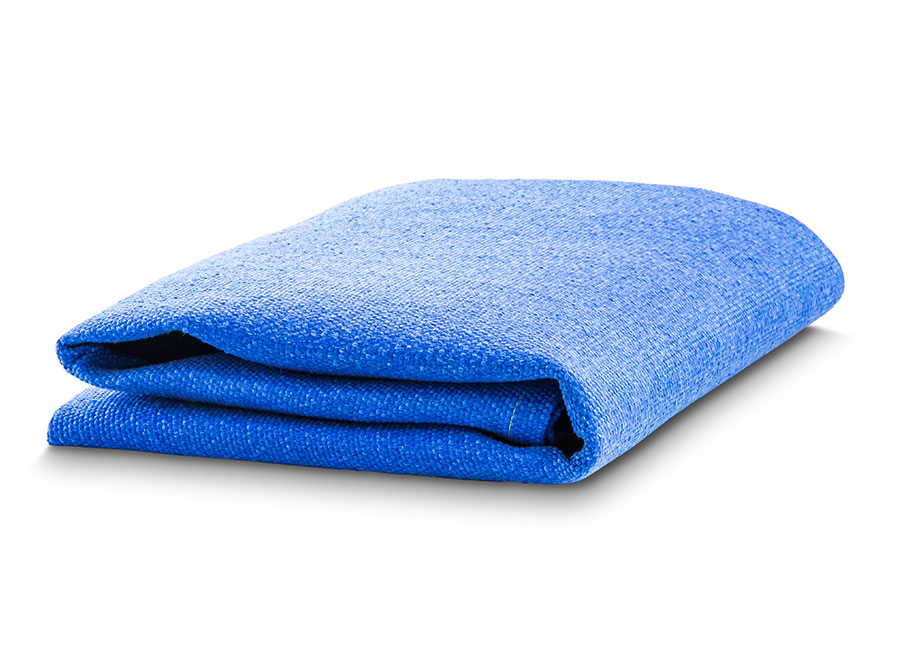

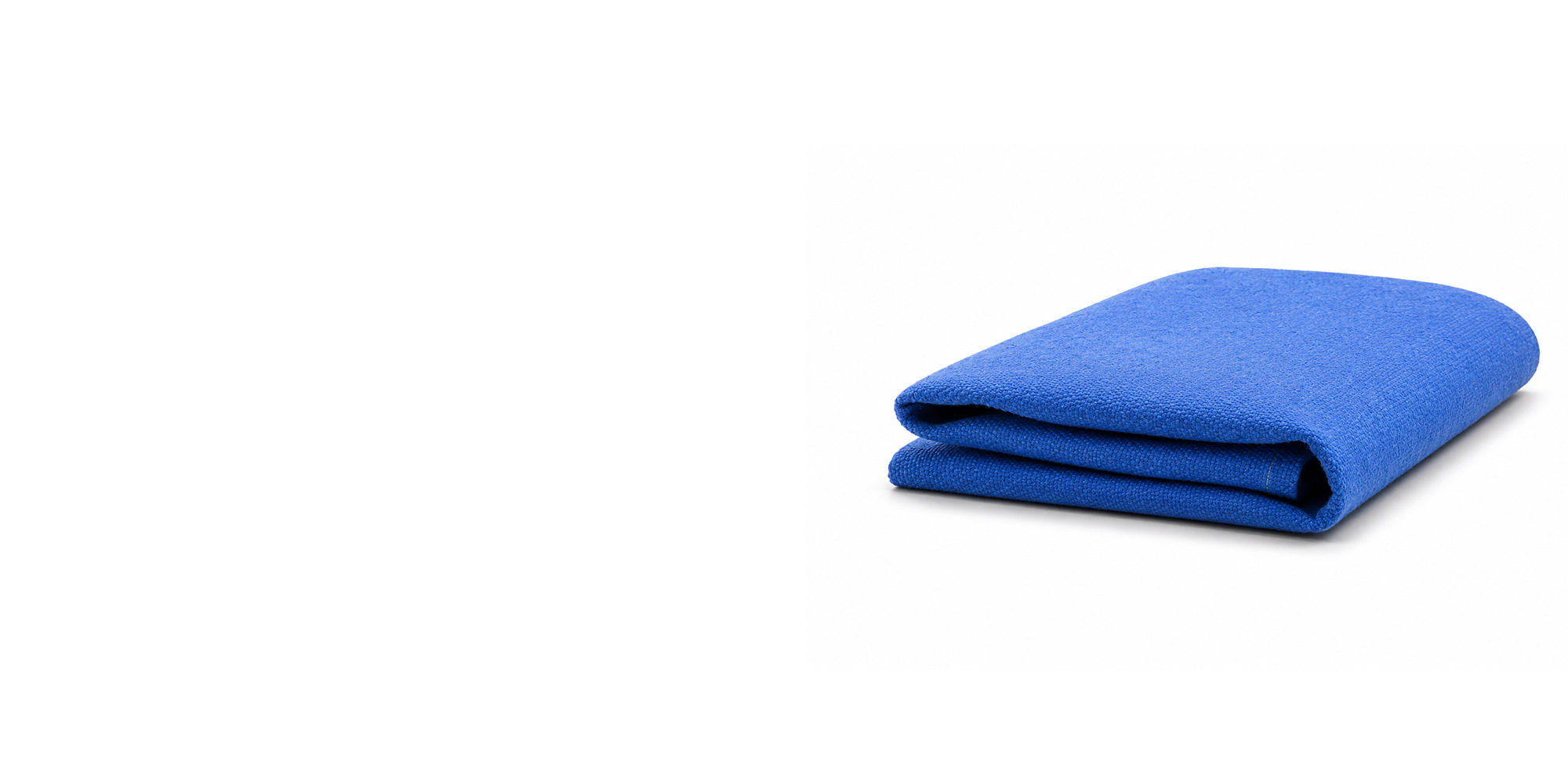

1100.HT · HEAVY-DUTY WELDING BLANKET UP TO 1100 °C
Robust High-Temperature Welding Blanket for High Thermal and Mechanical Loads
HIGH TEMPERATURE Heavy Duty
The 1100.HT welding blanket is a heavy and robust high-temperature welding blanket for demanding industrial welding, cutting and hot work. It combines high temperature resistance with high mechanical strength, making it particularly suitable for applications where the protective material is exposed to both high thermal and mechanical loads.
The 1100.HT is based on a heavy textured glass fabric with a double-sided calcium silicate HT finish. With a fabric weight of approx. 1,120 g/m², the welding blanket provides a durable heavy-duty construction and is designed for application temperatures up to 1,100 °C.
The 1100.HT is particularly suitable as a durable protective blanket against sparks, weld spatter, direct thermal exposure and flames. It can be used vertically or horizontally to shield and cover machinery, equipment, components, floors and adjacent work areas.
1100.HT Heavy-Duty Welding Blanket – Technical Overview
- Base fabric
- Textured glass fabric
- Finish
- Calcium silicate HT finish, double-sided
- Fabric weight
- approx. 1,120 g/m²
- Colour
- blue
- Reaction to fire
- non-combustible
- Application
- For demanding welding work with high thermal exposure
- Temperature resistance
- up to 1100 °C
- Performance level
- HIGH TEMPERATURE – Heavy Duty
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
1100.HT as Roll Goods and Fabricated Heavy-Duty Welding Blankets
The 1100.HT is available both as roll goods for individual further processing and in numerous fabricated standard sizes. The robust material construction is particularly suitable for industrial applications involving high thermal and mechanical loads. For project-specific requirements, custom dimensions can also be manufactured.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 50 linm | 1120 g/m² | 211000-010-500 | |
| 1500 mm | 50 linm | 1120 g/m² | 211000-015-500 | |
| 2000 mm | 50 linm | 1120 g/m² | 211000-020-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 1,12 kg | 211001-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 2,24 kg | 211001-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 3,36 kg | 211001-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 4,48 kg | 211001-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 6,72 kg | 211001-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 8,96 kg | 211001-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 10,08 kg | 211001-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 13,44 kg | 211001-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 16,80 kg | 211001-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 17,92 kg | 211001-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 22,40 kg | 211001-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 26,88 kg | 211001-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 28,00 kg | 211001-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 33,60 kg | 211001-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 39,20 kg | 211001-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 40,32 kg | 211001-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 47,04 kg | 211001-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 53,76 kg | 211001-060-080 |
Heavy-Duty Welding Protection for Demanding Industrial High-Temperature Applications
Technical and functional features
-
Heavy textured glass fabric for demanding industrial applications
-
Double-sided calcium silicate HT finish for high thermal loads
-
Temperature resistant up to 1,100 °C
-
Approx. 1,120 g/m² fabric weight for a robust heavy-duty construction
-
Good combination of thermal resistance and mechanical strength
-
High resistance to sparks, weld spatter and flames
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Metalworking and welding
-
Mechanical and plant engineering
-
Welding and cutting work
-
Maintenance and repair work
-
Protection of machinery and equipment
-
Covering of adjacent work areas
-
Shipbuilding and offshore applications
-
Industrial hot work
The Right High-Temperature Welding Blanket for Your Application
Our specialists support you in selecting the appropriate welding blanket and the right dimensions for your thermal and mechanical requirements.
Personal advice on product, configuration and application concept.
