WELDING PROTECTION · WELDING BLANKETS1020.VC2 - Welding Blanket for Metal Splash Protection up to 1000 °C
High-temperature welding blanket for heavy sparks, weld spatter, slag and molten metal splashes.
1020.VC2 · HIGH-TEMPERATURE WELDING BLANKET UP TO 1000 °C
Heavy High-Temperature Welding Blanket for Weld Spatter and Molten Metal Splashes
HIGH TEMPERATURE Metal Splashes

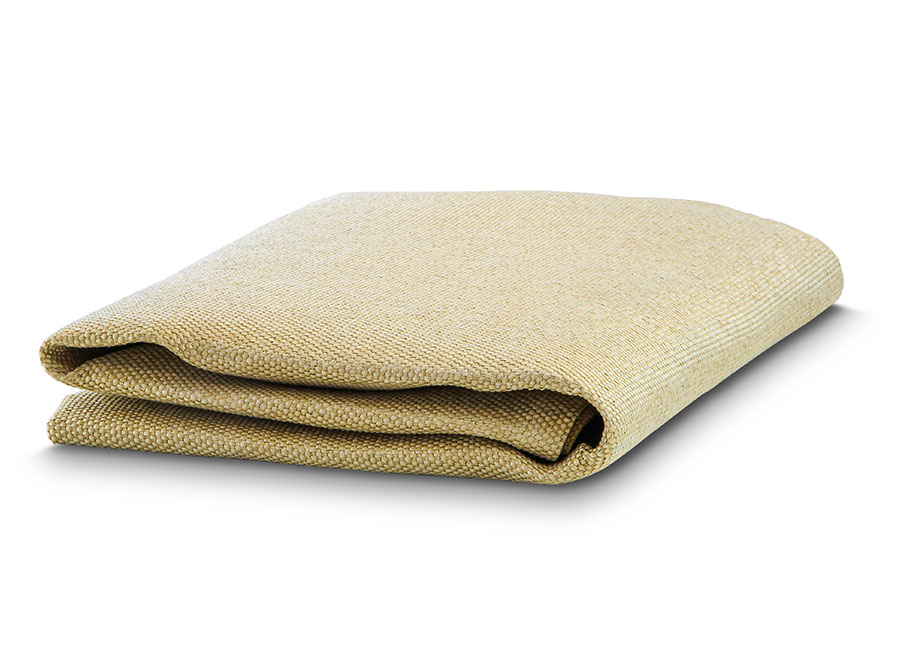

The 1020.VC2 welding and spatter protection blanket is a heavy high-temperature welding blanket for demanding industrial welding, cutting and hot work. It has been developed for applications where, in addition to heavy sparks and weld spatter, slag, direct thermal exposure and molten metal splashes may occur.
The 1020.VC2 is based on a heavy textured glass fabric with a double-sided vermiculite coating. The mineral coating protects the base fabric against direct thermal exposure and increases its thermal resistance. With a fabric weight of approx. 1,120 g/m², the blanket is designed for application temperatures up to 1,000 °C.
The combination of high temperature resistance and heavy material construction makes the 1020.VC2 particularly suitable for welding, flame cutting, plasma cutting and applications involving intensive spatter exposure. It can be used to shield and cover machinery, equipment, components, floors and adjacent work areas.
1020.VC2 Welding Blanket – Technical Overview
- Base fabric
- GT Glass Fabric
- Coating
- Vermiculite, double-sided
- Fabric weight
- approx. 1,120 g/m²
- Colour
- beige
- Reaction to fire
- non-combustible
- Application
- For welding work with high spatter and thermal exposure
- Temperature resistance
- up to 1000 °C
- Performance level
- HIGH TEMPERATURE – Metal Splashes
- Available formats
- Roll goods or fabricated welding and spatter protection blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
1020.VC2 as Roll Goods and Fabricated Welding & Spatter Protection Blankets
The 1020.VC2 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. For applications involving heavy spatter exposure, different formats are available for machinery, equipment and work areas. For project-specific requirements, custom dimensions can also be manufactured.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 50 linm | 1120 g/m² | 210200-010-500 | |
| 1500 mm | 50 linm | 1120 g/m² | 210200-015-500 | |
| 2000 mm | 50 linm | 1120 g/m² | 210200-020-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 1,12 kg | 210201-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 2,24 kg | 210201-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 3,36 kg | 210201-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 4,48 kg | 210201-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 6,72 kg | 210201-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 8,96 kg | 210201-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 10,08 kg | 210201-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 13,44 kg | 210201-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 16,80 kg | 210201-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 17,92 kg | 210201-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 22,40 kg | 210201-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 26,88 kg | 210201-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 28,00 kg | 210201-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 33,60 kg | 210201-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 39,20 kg | 210201-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 40,32 kg | 210201-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 47,04 kg | 210201-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 53,76 kg | 210201-060-080 |
For Heavy Spatter Exposure and High Temperatures in Industrial Hot Work
Technical and functional features
-
Heavy textured glass fabric for demanding industrial applications
-
Double-sided vermiculite coating for increased thermal resistance
-
Temperature resistant up to 1,000 °C
-
Approx. 1,120 g/m² fabric weight for a heavy-duty spatter protection construction
-
High resistance to sparks, weld spatter and slag
-
Suitable for protection against molten metal splashes
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding and spatter protection blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Metalworking and welding
-
Flame cutting and plasma cutting
-
Foundries and metallurgical operations
-
Mechanical and plant engineering
-
Maintenance and repair work
-
Protection of machinery, equipment and floors
-
Shipbuilding and offshore applications
-
Industrial hot work
The Right Welding & Spatter Protection Blanket for Your Application
Our specialists support you in selecting the appropriate welding and spatter protection blanket and the right dimensions for your thermal and application-specific requirements.
Personal advice on product, configuration and application concept.
