WELDING PROTECTION · WELDING BLANKETSKFZ.1460 - Fibreglass-Free Automotive Welding Blanket up to 1400 °C
Lightweight, flexible and paint-friendly welding blanket for bodywork, repair and welding operations on vehicles.

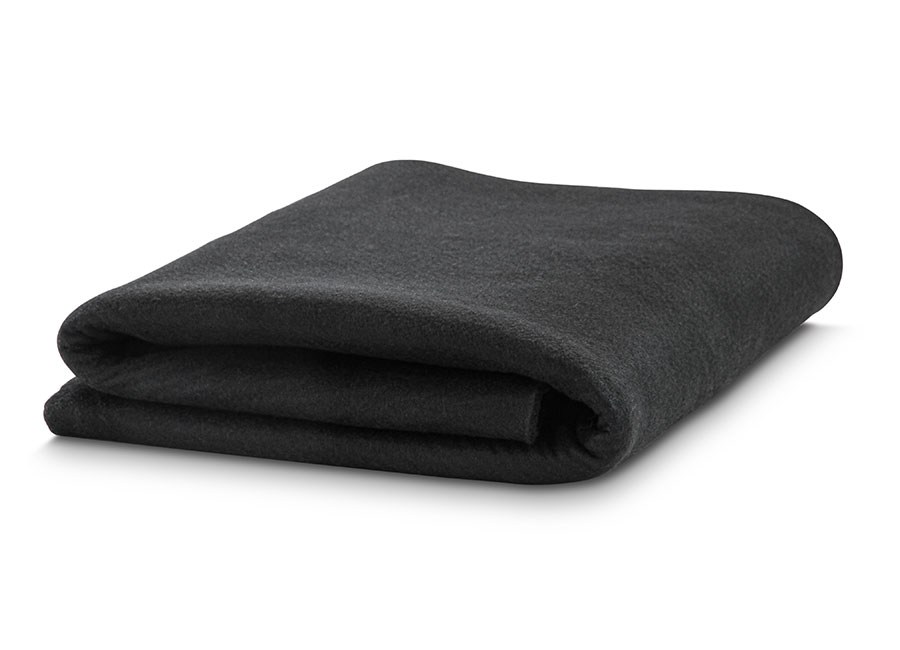

KFZ.1460 · EXTREME HEAT AUTOMOTIVE WELDING BLANKET UP TO 1400 °C
Fibreglass-Free Welding Blanket for Protecting Sensitive Vehicle and Paint Surfaces
EXTREME HEAT Automotive
The KFZ.1460 automotive welding blanket has been specifically developed for welding, grinding, repair and maintenance work on vehicles. Unlike conventional welding blankets made from glass fabric, it consists of a fibreglass-free Preox needle felt, making it particularly suitable for applications where sensitive paint surfaces, body panels and vehicle interiors need to be protected.

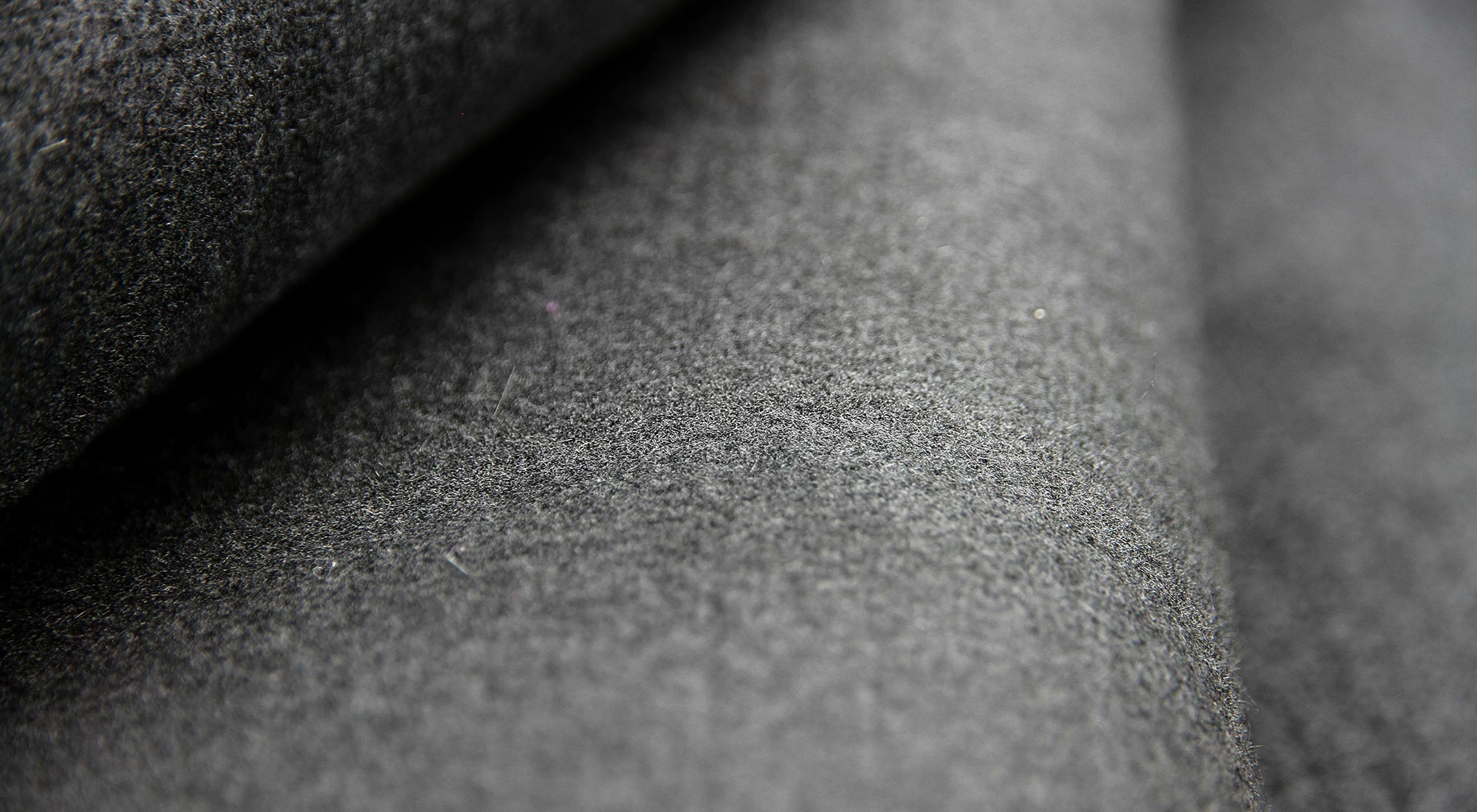

The mechanically bonded needle felt made from pre-oxidised PAN fibres has a material thickness of approx. 6.0 mm, providing a high level of thermal insulation. At the same time, at only approx. 600 g/m², the KFZ.1460 is exceptionally lightweight, soft and flexible. The welding blanket does not release glass fibre dust and is therefore particularly paint-friendly and skin-friendly.
With temperature resistance of up to 1,400 °C, the KFZ.1460 is suitable for protection against sparks, weld spatter, flames and high thermal exposure. Typical applications include vehicle body construction, vehicle repair, workshops, automotive production, as well as maintenance and repair work on vehicles and sensitive components.
KFZ.1460 Automotive Welding Blanket – Technical Overview
- Base material
- Preox needle felt, mechanically bonded
- Coating
- none
- Fabric weight
- approx. 600 g/m²
- Material thickness
- approx. 6.0 mm
- Colour
- black
- Application
- For welding work in automotive and body repair applications
- Temperature resistance
- up to 1400 °C
- Performance level
- EXTREME HEAT – Automotive
- Available formats
- Roll goods or fabricated welding blanket
- Fibreglass-free
- Yes
- PFAS-free
- Yes
- REACH compliant
- Yes
KFZ.1460 as Roll Goods and Fabricated Automotive Welding Blankets
The KFZ.1460 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Thanks to its low fabric weight and soft, flexible material structure, the welding blanket can be easily adapted to vehicle contours, body panels and sensitive surfaces. For project-specific requirements, custom dimensions can also be manufactured.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 30 linm | 600 g/m² | 214600-010-300 | |
| 2000 mm | 30 linm | 600 g/m² | 214600-020-300 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 0,60 kg | 214600-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 1,20 kg | 214600-010-020 | |
| 1.600 × 2.000 mm | 3,20 m² | 1,92 kg | 214600-016-020 | |
| 2.000 × 2.000 mm | 4,00 m² | 2,40 kg | 214600-020-020 | |
| 2.000 × 2.500 mm | 5,00 m² | 3,00 kg | 214600-020-025 | |
| 2.000 × 3.000 mm | 6,00 m² | 3,60 kg | 214600-020-030 | |
| 2.000 × 3.500 mm | 7,00 m² | 4,20 kg | 214600-020-035 | |
| 2.000 × 4.000 mm | 8,00 m² | 4,80 kg | 214600-020-040 | |
| 2.000 × 4.500 mm | 9,00 m² | 5,40 kg | 214600-020-045 | |
| 2.000 × 5.000 mm | 10,00 m² | 6,00 kg | 214600-020-050 | |
| 2.000 × 5.500 mm | 11,00 m² | 6,60 kg | 214600-020-055 | |
| 2.000 × 6.000 mm | 12,00 m² | 7,20 kg | 214600-020-060 | |
| 4.000 × 4.000 mm | 16,00 m² | 9,60 kg | 214600-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 12,00 kg | 214600-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 14,40 kg | 214600-040-060 | |
| 4.000 × 7.000 mm | 28,00 m² | 16,80 kg | 214600-040-070 | |
| 4.000 × 8.000 mm | 32,00 m² | 19,20 kg | 214600-040-080 |
Specialised Welding and Heat Protection for Automotive, Bodywork and Workshop Applications
Technical and functional features
-
100% fibreglass-free Preox needle felt for sensitive automotive applications
-
Paint-friendly material surface without glass fibre dust
-
Temperature resistant up to 1,400 °C
-
Approx. 6.0 mm material thickness for high thermal insulation
-
Only approx. 600 g/m² fabric weight for lightweight and flexible handling
-
Soft, flexible and skin-friendly
-
Resistant to sparks, weld spatter and flames
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding blankets
Typical applications
-
Automotive production and vehicle manufacturing
-
Bodywork and vehicle repairs
-
Automotive workshops and paint shops
-
Protection of sensitive paint surfaces
-
Covering vehicle body and interior components
-
Welding, grinding and cutting work on vehicles
-
Maintenance and repair work
-
Prototype construction and vehicle development
The Right Welding Blanket for Automotive and Bodywork Applications
Our specialists support you in selecting the appropriate fibreglass-free welding blanket and the right dimensions for your automotive, bodywork and workshop application.
Personal advice on product, configuration and application concept.
