WELDING PROTECTION · WELDING BLANKETS1615.VC2 - Heavy-Duty Silica Welding Blanket up to 1600 °C
Heavy-duty high-temperature welding and spatter protection blanket for extreme thermal and mechanical loads in industrial applications.
1615.VC2 · EXTREME HEAT HEAVY DUTY UP TO 1600 °C
Heavy-Duty Silica Welding Blanket for Extreme Thermal and Mechanical Loads
EXTREME HEAT Heavy Duty

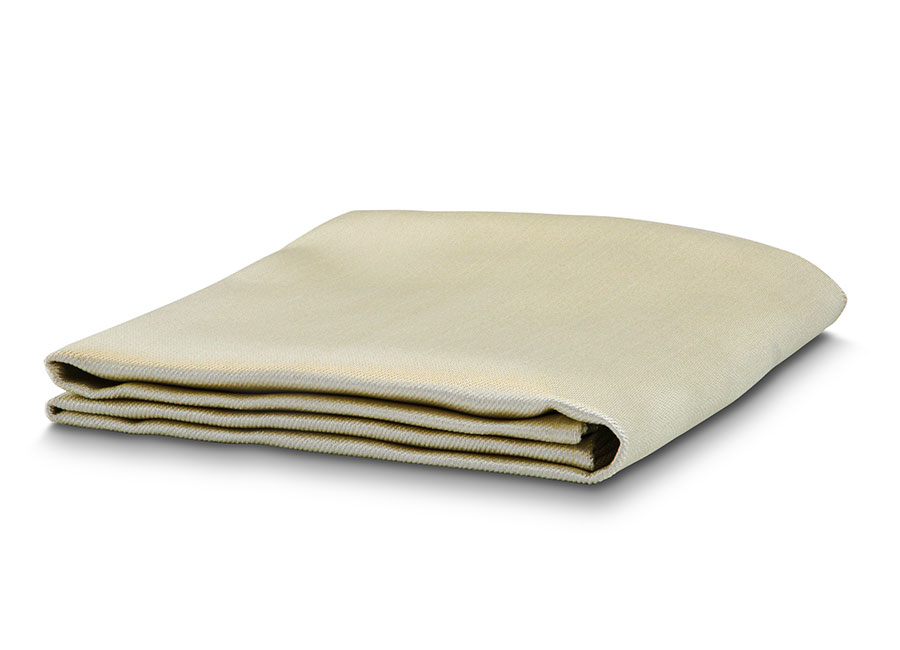

The 1615.VC2 heavy-duty silica welding blanket is a heavy high-temperature welding and spatter protection blanket for extremely demanding industrial welding, cutting and hot work. It has been developed for applications involving not only extreme temperatures, but also high mechanical loads and intensive exposure to sparks, weld spatter and molten metal splashes.
The 1615.VC2 is based on a heavy SiO2 silica fabric with a double-sided vermiculite coating. With a fabric weight of approx. 1,150 g/m², the welding blanket provides a particularly robust heavy-duty construction. The high-temperature-resistant silica fabric is designed for application temperatures up to 1,200 °C and short-term temperature exposure up to 1,600 °C.
The 1615.VC2 provides reliable protection against heavy sparks, weld spatter, direct flame and molten metal splashes. Thanks to its high thermal and mechanical resistance, it is particularly suitable for heavy industrial applications in shipbuilding, plant engineering, foundries, metalworking, and the chemical and petrochemical industries.
1615.VC2 Heavy-Duty Silica Welding Blanket – Technical Overview
- Base fabric
- SiO2 silica fabric
- Coating
- Vermiculite, double-sided
- Fabric weight
- approx. 1150 g/m²
- Colour
- gold-brown
- Reaction to fire
- non-combustible
- EN 13501-1
- A1
- Application
- For demanding welding work with extreme thermal exposure
- Temperature resistance
- up to 1200 °C / short-term up to 1600 °C
- Performance level
- EXTREME HEAT – Heavy Duty
- FM Approved
- Tested and approved by FM Global
- Available formats
- Roll goods or fabricated welding blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
1615.VC2 as Roll Goods and Fabricated Heavy-Duty Welding & Spatter Protection Blankets
The 1615.VC2 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. The heavy-duty material construction is particularly suitable for industrial applications involving extreme thermal and high mechanical loads. Custom dimensions can also be manufactured for project-specific requirements.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 930 mm | 50 linm | 1150 g/m² | 216150-009-500 | |
| 1525 mm | 50 linm | 1150 g/m² | 216150-015-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 900 × 1.000 mm | 0,90 m² | 1,04 kg | 216151-009-010 | |
| 900 × 2.000 mm | 1,80 m² | 2,07 kg | 216151-009-020 | |
| 900 × 3.000 mm | 2,70 m² | 3,11 kg | 216151-009-030 | |
| 1.800 × 2.000 mm | 3,60 m² | 4,14 kg | 216151-018-020 | |
| 1.800 × 3.000 mm | 5,40 m² | 6,21 kg | 216151-018-030 | |
| 1.800 × 4.000 mm | 7,20 m² | 8,28 kg | 216151-018-040 | |
| 1.800 × 5.000 mm | 9,00 m² | 10,35 kg | 216151-018-050 | |
| 2.000 × 3.000 mm | 6,00 m² | 6,90 kg | 216151-020-030 | |
| 2.700 × 3.000 mm | 8,10 m² | 9,32 kg | 216151-027-030 | |
| 2.700 × 4.000 mm | 10,80 m² | 12,42 kg | 216151-027-040 | |
| 2.700 × 5.000 mm | 13,50 m² | 15,53 kg | 216151-027-050 | |
| 2.700 × 6.000 mm | 16,20 m² | 18,63 kg | 216151-027-060 | |
| 3.000 × 3.000 mm | 9,00 m² | 10,35 kg | 216151-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 13,80 kg | 216151-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 17,25 kg | 216151-030-050 | |
| 3.600 × 4.000 mm | 14,40 m² | 16,56 kg | 216151-036-040 | |
| 3.600 × 5.000 mm | 18,00 m² | 20,70 kg | 216151-036-050 | |
| 3.600 × 6.000 mm | 21,60 m² | 24,84 kg | 216151-036-060 |
Heavy-Duty Spatter Protection for Extreme Temperatures and High Mechanical Loads
Technical and functional features
-
Heavy SiO2 silica fabric for extreme industrial temperature ranges
-
Double-sided vermiculite coating for increased thermal resistance
-
Temperature resistant up to 1,200 °C and short-term up to 1,600 °C
-
Approx. 1,150 g/m² fabric weight for a robust heavy-duty construction
-
High combination of thermal performance and mechanical resistance
-
Resistant to sparks, weld spatter, flames and molten metal splashes
-
Excellent chemical resistance for demanding industrial environments
-
Suitable for vertical and horizontal applications
-
Available as roll goods and fabricated welding and spatter protection blankets
Typical applications
-

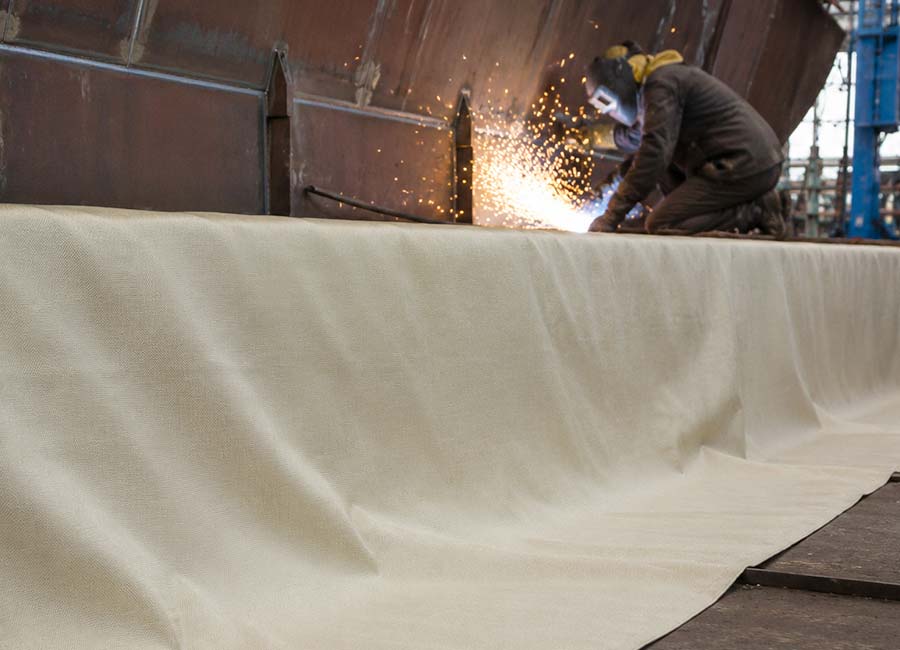

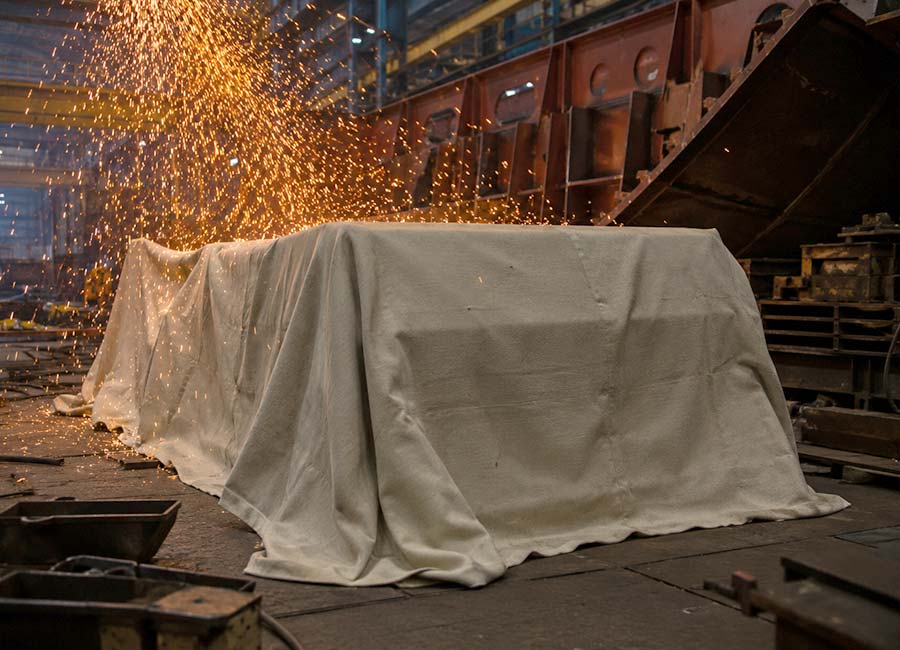

Heavy metalworking and welding
-
Shipbuilding, shipyards and offshore applications
-
Mechanical and plant engineering
-
Foundries and metallurgical operations
-
Chemical and petrochemical industry
-
Refineries and power plants
-
Welding, cutting and intensive hot work
-
Industrial hot work
The Right Heavy-Duty Welding Blanket for Extreme Temperatures
Our specialists support you in selecting the appropriate high-temperature welding and spatter protection blanket and the right dimensions for your thermal and mechanical requirements.
Personal advice on product, configuration and application concept.
