WELDING PROTECTION · HEAT PROTECTION BLANKETS620.A1 - Radiant Heat Protection Blanket up to 1000 °C

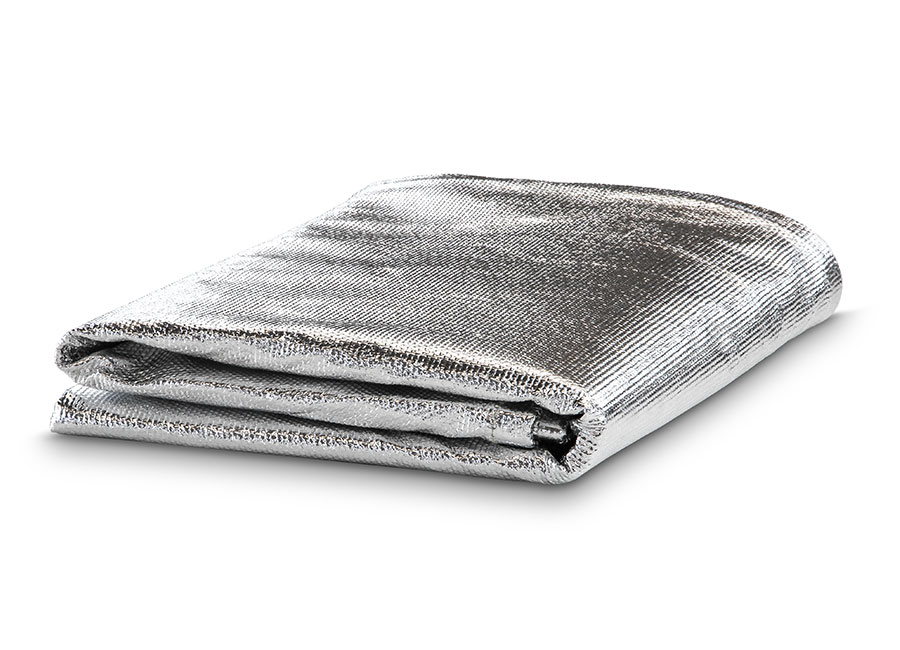

Aluminium-faced heat protection blanket for reflecting intense radiant heat and protecting thermally exposed areas.
620.A1 · INDUSTRIAL HEAT PROTECTION BLANKET UP TO 1000 °C
Reflective Heat Protection Blanket for High Radiant Heat Exposure
INDUSTRIAL Radiant Heat
The 620.A1 heat protection blanket has been specifically developed for industrial applications where machinery, components, workpieces or adjacent work areas need to be protected against intense radiant heat.
The 620.A1 is based on a heavy textured glass fabric laminated with aluminium foil on one side. The highly reflective surface can reflect up to 90% of incident radiant heat, thereby reducing the thermal load on areas behind the blanket. The heat protection blanket is designed for radiant heat temperatures up to 1000 °C.
With a fabric weight of approx. 1,080 g/m², the 620.A1 provides a robust industrial construction and is particularly suitable as a heat shield, thermal barrier and protective cover in mechanical and plant engineering, foundries, metallurgical operations, as well as maintenance and hot-work applications.
620.A1 Heat Protection Blanket – Technical Overview
- Base fabric
- GT Glass Fabric
- Facing
- Aluminium foil, single-sided
- Fabric weight
- approx. 1,080 g/m²
- Colour
- glossy silver
- Reaction to fire
- non-combustible
- Application
- Protection against high radiant and process heat
- Radiant heat
- up to 1000 °C
- Performance level
- INDUSTRIAL – Radiant Heat
- Heat reflection
- up to 90%
- Available formats
- Roll goods or fabricated heat protection blanket
- PFAS-free
- Yes
- REACH compliant
- Yes
620.A1 as Roll Goods and Fabricated Heat Protection Blankets
The 620.A1 is available both as roll goods for individual further processing and in numerous fabricated standard sizes. Custom dimensions can also be manufactured for project-specific requirements. Optional features such as eyelets or a self-adhesive backing are also available.
Rolls
| Width | Roll length | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1000 mm | 50 linm | 1050 g/m² | 2062a0-010-500 |
Welding Blankets
| Dimensions | Size | Weight | Order Number | Inquiry |
|---|---|---|---|---|
| 1.000 × 1.000 mm | 1,00 m² | 1,05 kg | 2062a2-010-010 | |
| 1.000 × 2.000 mm | 2,00 m² | 2,10 kg | 2062a2-010-020 | |
| 1.000 × 3.000 mm | 3,00 m² | 3,15 kg | 2062a2-010-030 | |
| 2.000 × 2.000 mm | 4,00 m² | 4,20 kg | 2062a2-020-020 | |
| 2.000 × 3.000 mm | 6,00 m² | 6,30 kg | 2062a2-020-030 | |
| 2.000 × 4.000 mm | 8,00 m² | 8,40 kg | 2062a2-020-040 | |
| 3.000 × 3.000 mm | 9,00 m² | 9,45 kg | 2062a2-030-030 | |
| 3.000 × 4.000 mm | 12,00 m² | 12,60 kg | 2062a2-030-040 | |
| 3.000 × 5.000 mm | 15,00 m² | 15,75 kg | 2062a2-030-050 | |
| 4.000 × 4.000 mm | 16,00 m² | 16,80 kg | 2062a2-040-040 | |
| 4.000 × 5.000 mm | 20,00 m² | 21,00 kg | 2062a2-040-050 | |
| 4.000 × 6.000 mm | 24,00 m² | 25,20 kg | 2062a2-040-060 | |
| 5.000 × 5.000 mm | 25,00 m² | 26,25 kg | 2062a2-050-050 | |
| 5.000 × 6.000 mm | 30,00 m² | 31,50 kg | 2062a2-050-060 | |
| 5.000 × 7.000 mm | 35,00 m² | 36,75 kg | 2062a2-050-070 | |
| 6.000 × 6.000 mm | 36,00 m² | 37,80 kg | 2062a2-060-060 | |
| 6.000 × 7.000 mm | 42,00 m² | 44,10 kg | 2062a2-060-070 | |
| 6.000 × 8.000 mm | 48,00 m² | 50,40 kg | 2062a2-060-080 |
Effective Heat Protection by Reflecting Intense Radiant Heat
Technical and functional features
-
Heavy textured glass fabric for robust industrial applications
-
Single-sided aluminium foil for reflecting intense radiant heat
-
Up to 90% reflection of incident radiant heat
-
Suitable for radiant heat temperatures up to 1000 °C
-
Approx. 1,080 g/m² fabric weight for a robust industrial construction
-
Ideal as a heat shield and thermal barrier
-
Available as roll goods and fabricated heat protection blankets
-
Standard sizes and custom-made solutions
Typical applications
-
Foundries and metallurgical operations
-
Furnace and plant engineering
-
Mechanical and plant engineering
-
Shielding against radiant heat
-
Protection of machinery and components
-
Protection of temperature-sensitive workpieces
-
Maintenance and repair work
-
Industrial hot work
The Right Heat Protection Blanket for Your Thermal Exposure
Our specialists support you in selecting the appropriate heat protection blanket as well as the right dimensions and configuration for your application.
Personal advice on product, configuration and application concept.
