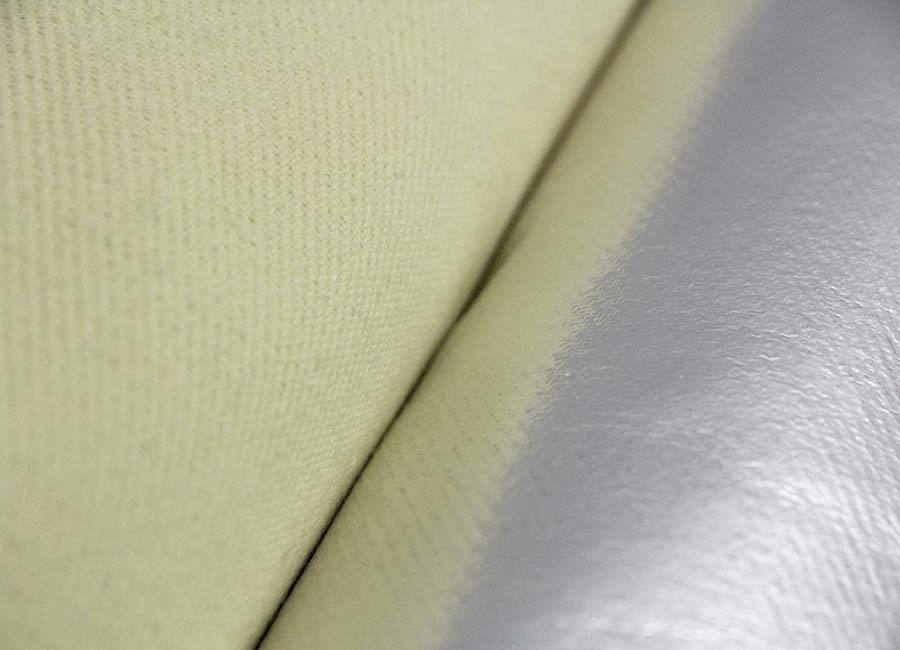

Para-Aramid Fabric
Para-aramid fabric is a high-performance material made from para-aramid fibers. These fibers belong to the family of aromatic polyamides and are known for their outstanding mechanical and thermal properties. Para-aramid is especially renowned for its exceptional strength, heat resistance, and ability to withstand high stresses.
Para-aramid fabric is woven using a special process from long para-aramid filaments, which gives the material high tensile strength and low elongation. These fibers consist of highly structured molecular chains that are connected by strong chemical bonds. As a result, the fabric achieves very high strength while remaining lightweight.
| Material | 100% Para-Aramid |
| Optional coatings | Aluminum foil, aluminum polyester foil, polyurethane, or silicone |
| Manufacturing qualities | 200 - 640 g/m² |
| Manufacturing widths | 1000 - 1550 mm |
| Temperature resistance | 350 °C, short-term up to 600 °C |
High-Performance Para-Aramid Fabric – Our Trusted Standard Grades
For information on additional grades or our customized coating options, feel free to contact us.
| Quality type | Structure | Temperature resistance (permanent | short-term) | Weave | Weight (incl. coating) | Standard Width | Data Sheet |
|---|---|---|---|---|---|---|
| A200K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/1 / Twill 2/1 | 200 g/m² | 1030 mm | |
| A220K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/1 / Twill 2/1 | 220 g/m² | 1030 mm | |
| A230K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/1 / Twill 2/1 | 230 g/m² | 1550 mm | |
| A270K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/2 / Twill 2/2 | 270 g/m² | 1030 mm | |
| A325K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Kreuzköper 3/1 / Cross Twill 3/1 | 325 g/m² | 1030 mm | |
| A370H | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Fischgrat / Heringbone | 370 g/m² | 1540 mm | |
| A480K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/2 / Twill 2/2 | 480 g/m² | 1030 mm | |
| A500K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/2 / Twill 2/2 | 500 g/m² | 1540 mm | |
| A500K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/2 / Twill 2/2 | 500 g/m² | 1540 mm | |
| A600K | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Köper 2/2 / Twill 2/2 | 600 g/m² | 1030 mm | |
| A600P | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Panama | 600 g/m² | 1030 mm | |
| A640P | 100% Para-Aramid Fabric | 200 °C | 450 - 500 °C | Panama | 640 g/m² | 1030 mm |
Technical Characteristics
- Para-aramid fabrics exhibit permanent temperature stability of 350 °C and can withstand short-term exposure to up to 600 °C.
- Para-aramid has extremely high tensile strength and high resistance to mechanical stress while maintaining relatively low weight. Therefore, para-aramid fabrics are ideal for use in applications with high mechanical demands.
- Para-aramid is flame-retardant and does not melt under high-temperature exposure.
- It has high resistance to organic solvents, oils, and many chemicals.
- Para-aramid fabric has good electrical insulating properties, making it suitable for applications in the electronics field.
Application Examples
- Manufacture of protective clothing: Para-aramid is used in ballistic vests, helmets, fire-resistant suits, and heat protection suits because it is extremely resistant to penetration and heat.
- Automotive and aerospace industries: Para-aramid is used in tire reinforcements, brake hoses, and lightweight components to reduce weight while increasing strength.
- Sports equipment: Para-aramid fabric is used in protective clothing for motorsport athletes to ensure high durability and reliability.
- Reinforcement materials: Para-aramid is used in composites and as reinforcement in plastic parts to provide strength without adding excessive weight.
