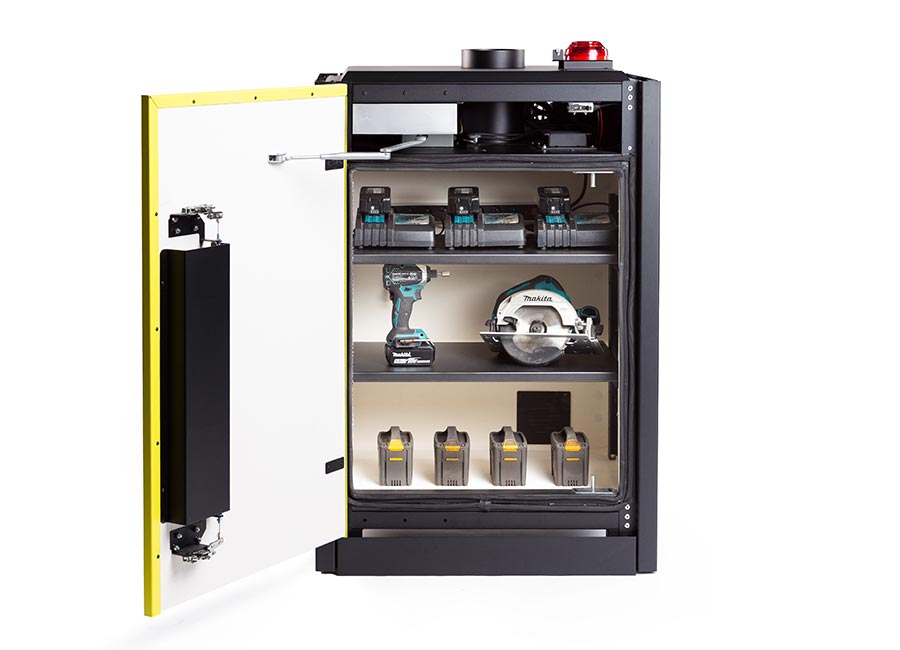

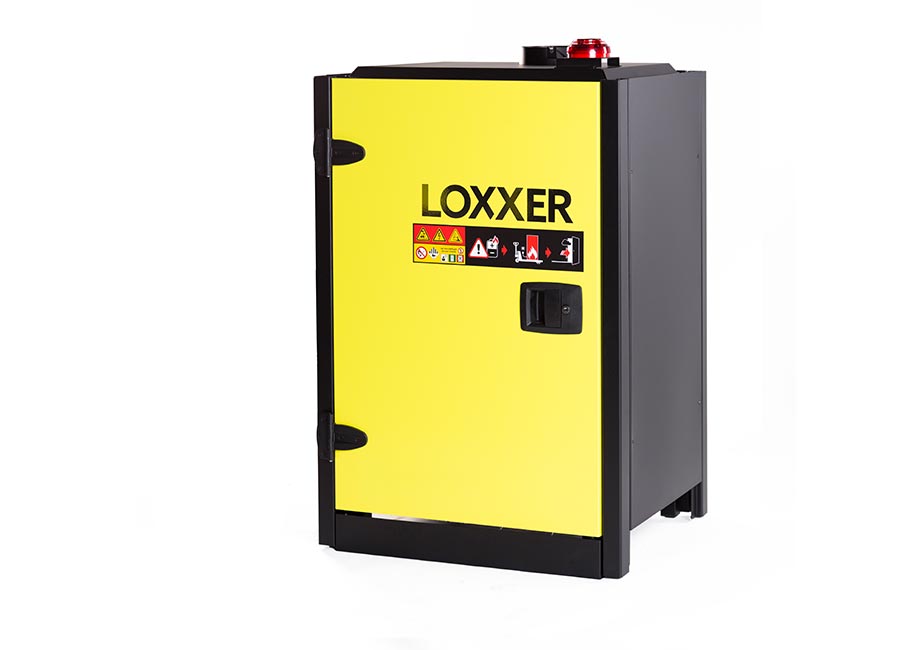

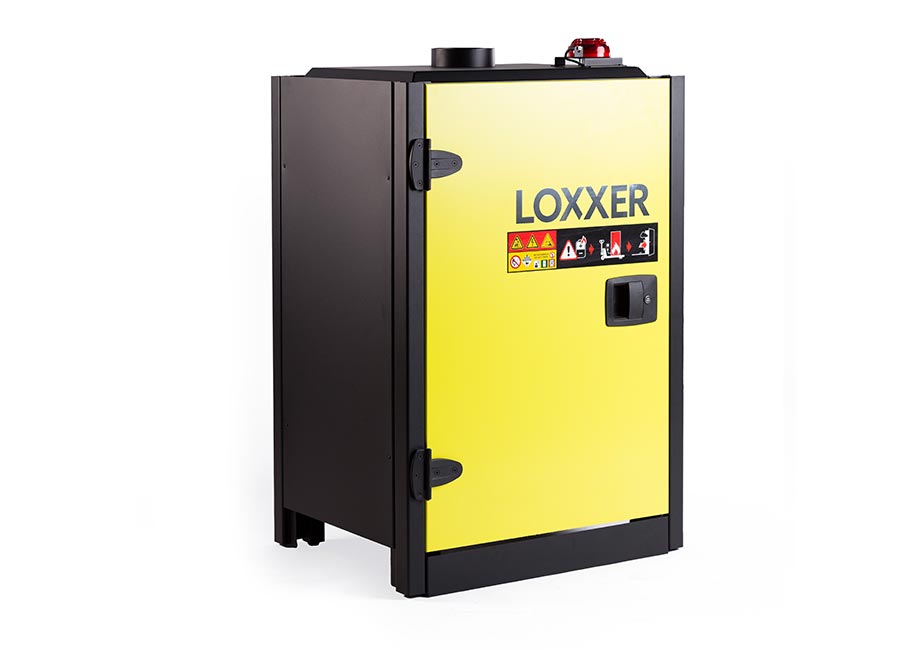

Lithium-Ion Battery Cabinet LOXK1100

Lithium-ion batteries have become widely established across almost every industry. At the same time, damaged, aged or defective batteries can pose a potential safety risk. A so-called thermal runaway event can lead to rapid heat generation, smoke development and, in extreme cases, a fire within a very short period of time.

Professional battery storage and charging cabinets provide a controlled and monitored environment to help manage these risks. They enable the safe storage and charging of batteries while helping to protect employees, buildings, equipment and valuable assets.

Overall Dimensions	1186 x 760 x 585 mm (H x W x D)
Internal Dimensions	767 x 688 x 520 mm (H x W x D)
Weight	162.5 kg

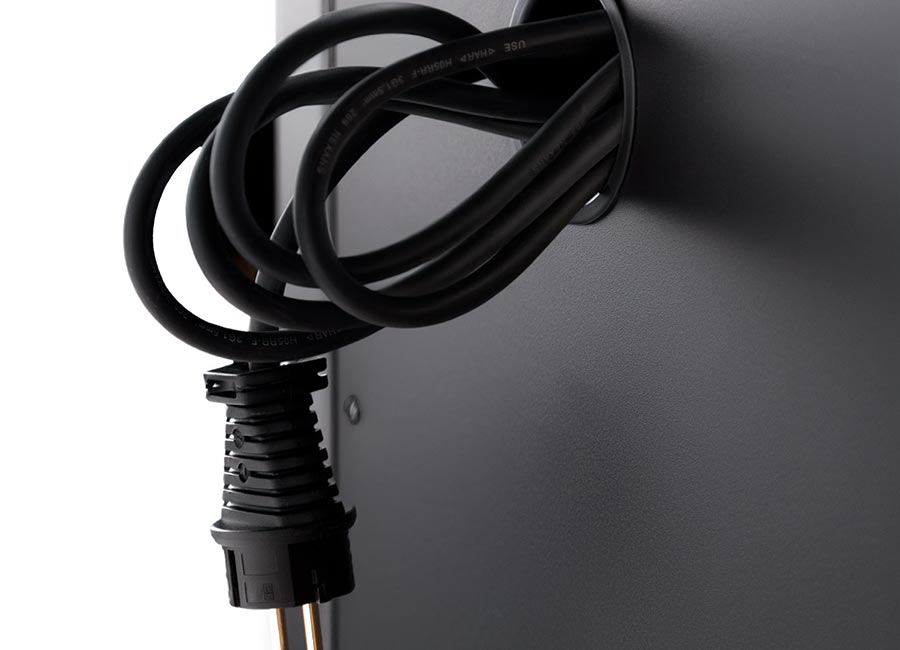

Standard Power Supply	1 x 230 V / 16 A
Alarm Sound Level	94–106 dB(A)
Fire Resistance Classification	A1
Certification	CE Certified, VDMA 24994 Compliant
Fire-Resistant Wall Construction	EN 1364-1:2015

Key Benefits of the LOXK1100 Battery Cabinet

Compact design for workshops, warehouses and service areas
Suitable for the storage and charging of lithium-ion batteries
Designed in accordance with VDMA 24994

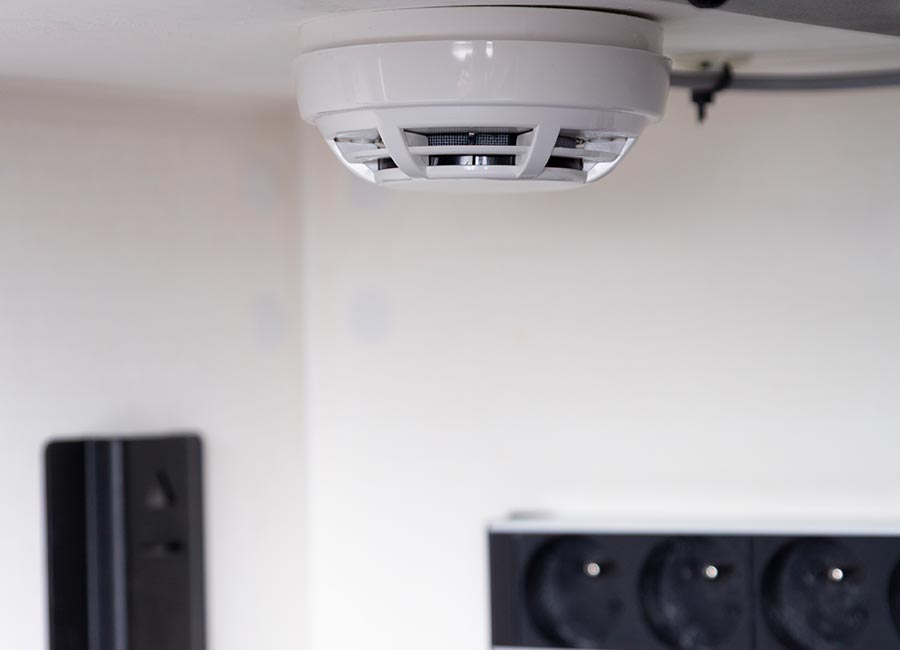

Smoke and temperature monitoring

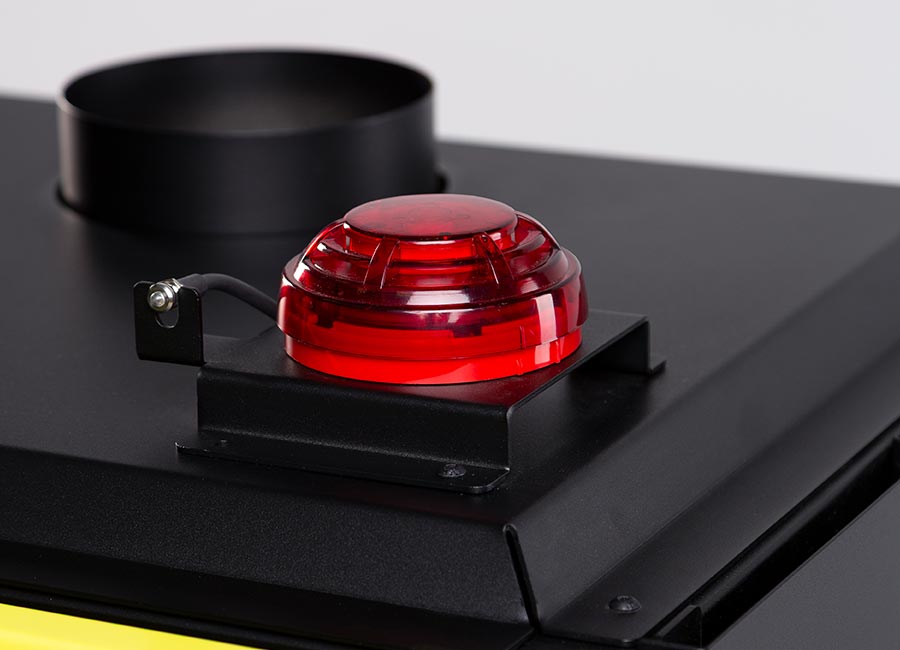

Audible and visual alarms

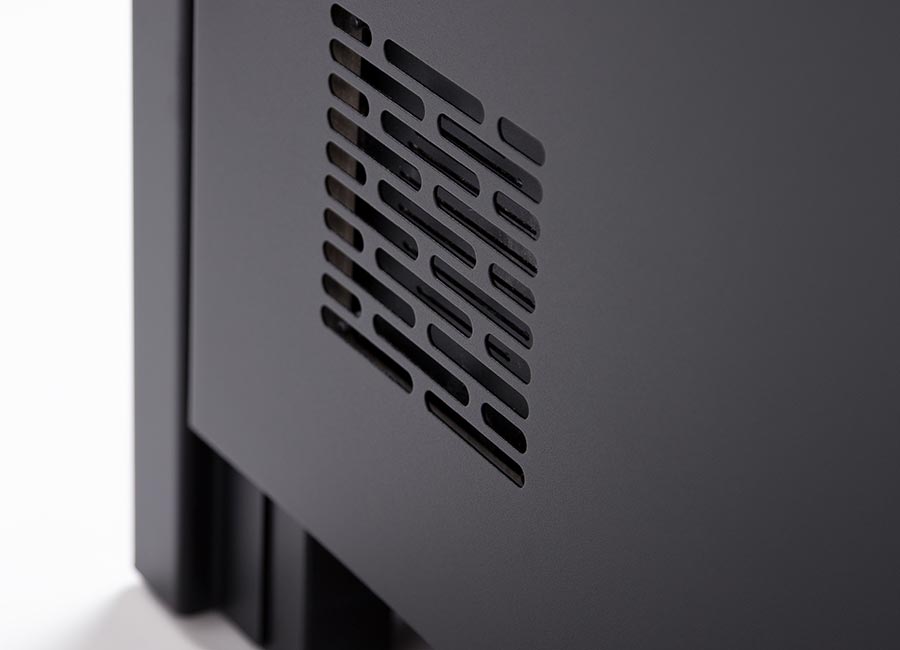

Active ventilation for temperature control
Prepared for integration with fire alarm systems
Self-closing door with locking mechanism

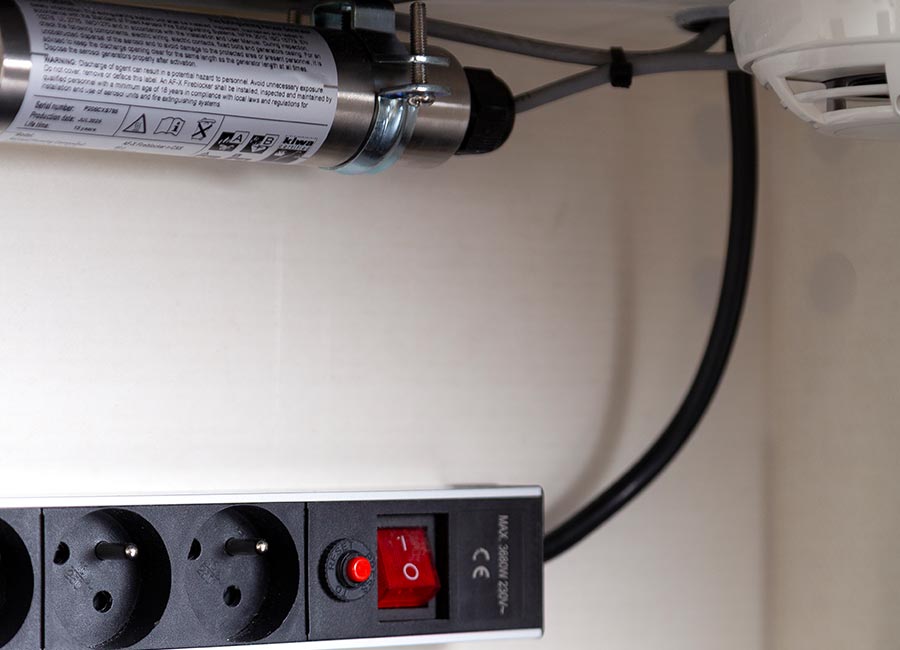

Optional aerosol fire suppression system available

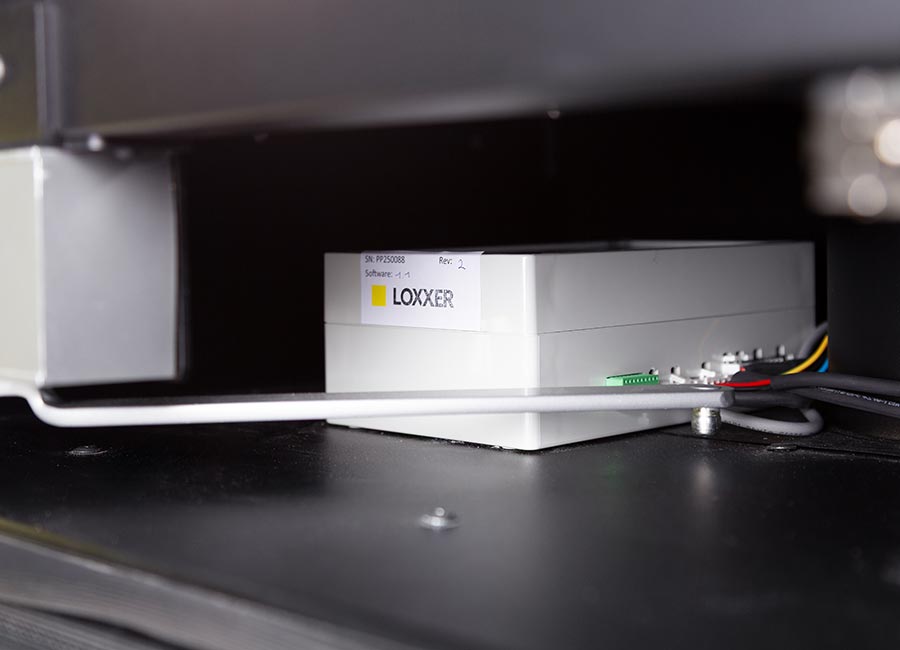

Optional remote monitoring module available

Ideal for E-Bike, Power Tool and Industrial Batteries

The LOXK1100 has been specifically designed for organizations that regularly store or charge lithium-ion batteries. Thanks to its compact design, the cabinet is particularly suitable for businesses with limited space and high requirements for safety, organization and operational efficiency. Typical applications include:
