Lithium-Ion Battery Cabinet LOXK2000

The LOXK2000 is a professional battery storage and charging cabinet designed for organizations with increased requirements for safe battery storage and charging infrastructure. Developed for the storage and charging of lithium-ion batteries, the cabinet combines advanced monitoring and safety technology with high storage capacity and a robust industrial-grade design.

The battery cabinet is particularly suitable for e-bike batteries, e-scooter batteries, power tool batteries, industrial batteries and other lithium-ion energy storage systems that require regular charging and storage.

Advanced Safety for Lithium-Ion Battery Storage and Charging

Lithium-ion batteries store large amounts of energy in a compact space. As the number of batteries being charged and stored continues to increase, the importance of a professional safety concept becomes ever greater. The LOXK2000 has been specifically designed to detect potential risks during the storage and charging of lithium-ion batteries at an early stage and to support the implementation of appropriate safety measures.

By combining smoke detection, temperature monitoring, active ventilation and an optional aerosol fire suppression system, the cabinet provides a high level of protection for employees, buildings and valuable assets.

Overall Dimensions	2040 x 1142 x 765 mm (H x W x D)
Internal Dimensions	1600 x 1070 x 680 mm (H x W x D)
Weight	450.0 kg
Standard Power Supply	3 x 400 V + N (16 A)
Alarm Sound Level	94–106 dB(A)
Fire Classification	A1
Certification	CE Certified, VDMA 24994 Compliant
Fire-Resistant Wall Construction	EN 1364-1:2015

Key Benefits of the LOXK2000 Battery Cabinet

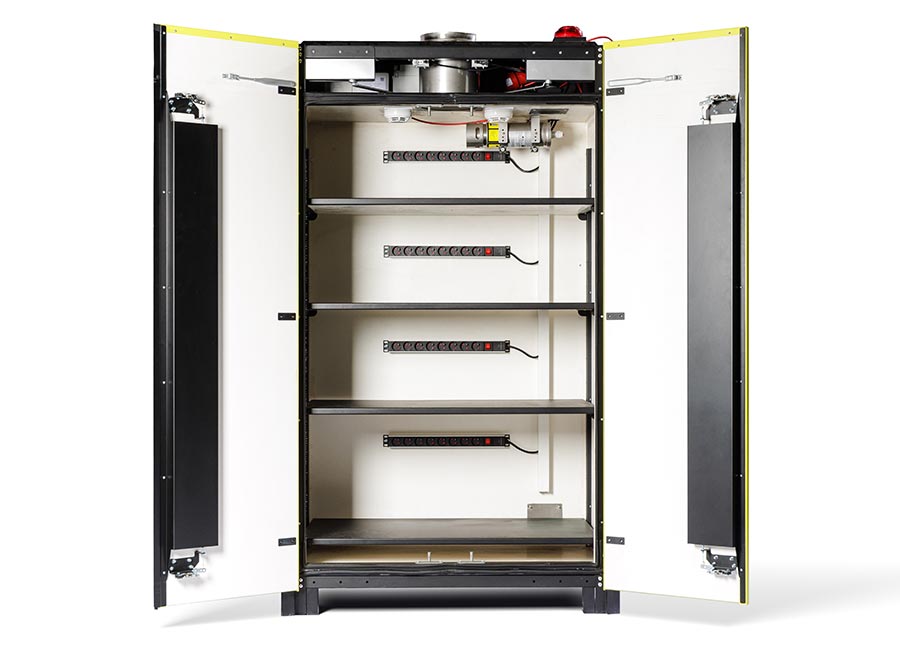

High-Capacity Battery Storage and Charging Cabinet
For the Safe Storage and Charging of Lithium-Ion Batteries
VDMA 24994 Certified Design

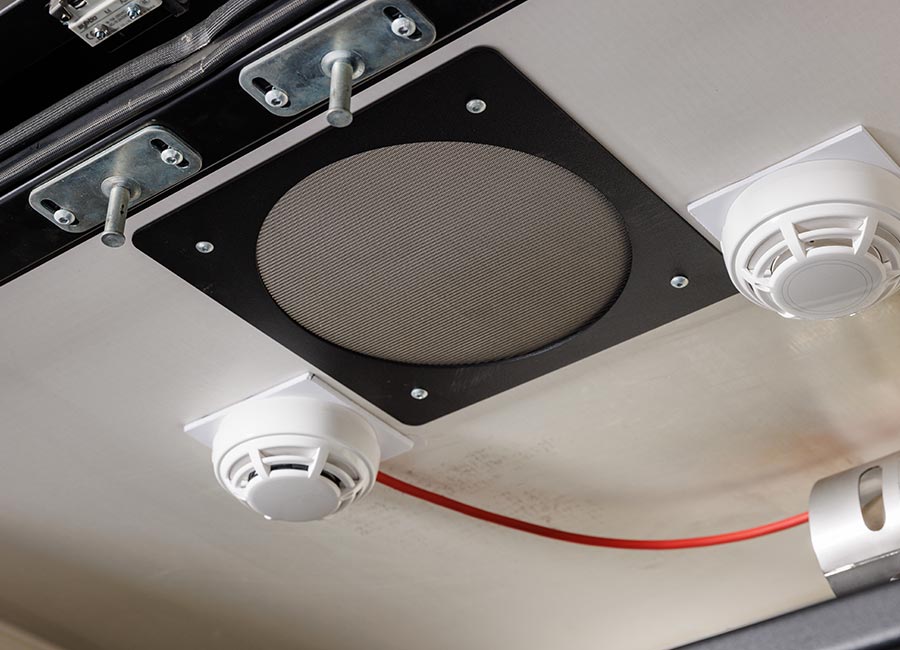

Dual Smoke Detectors for Early Hazard Detection
Audible and Visual Alarms

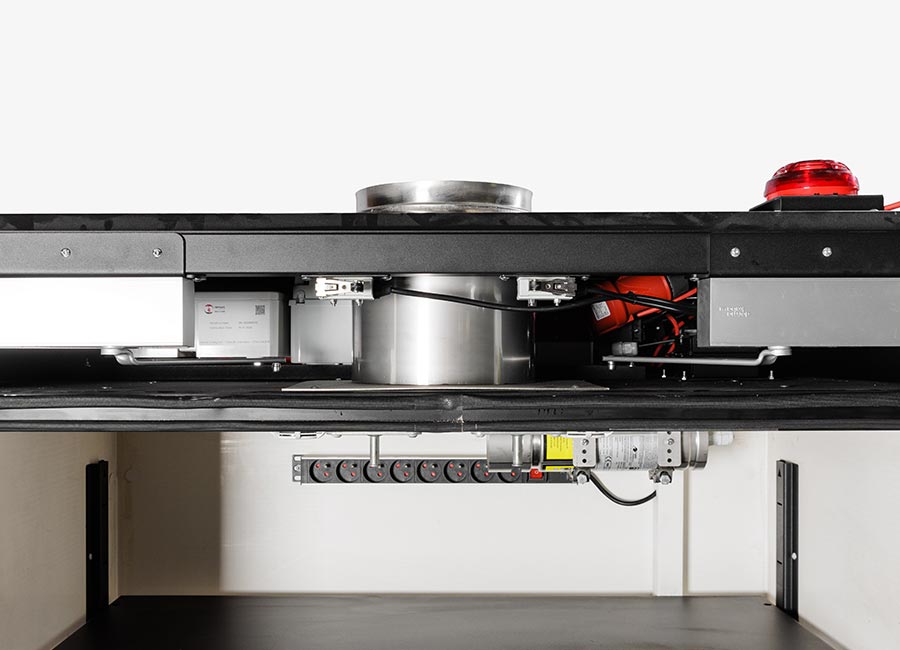

Active Forced Ventilation for Temperature Control

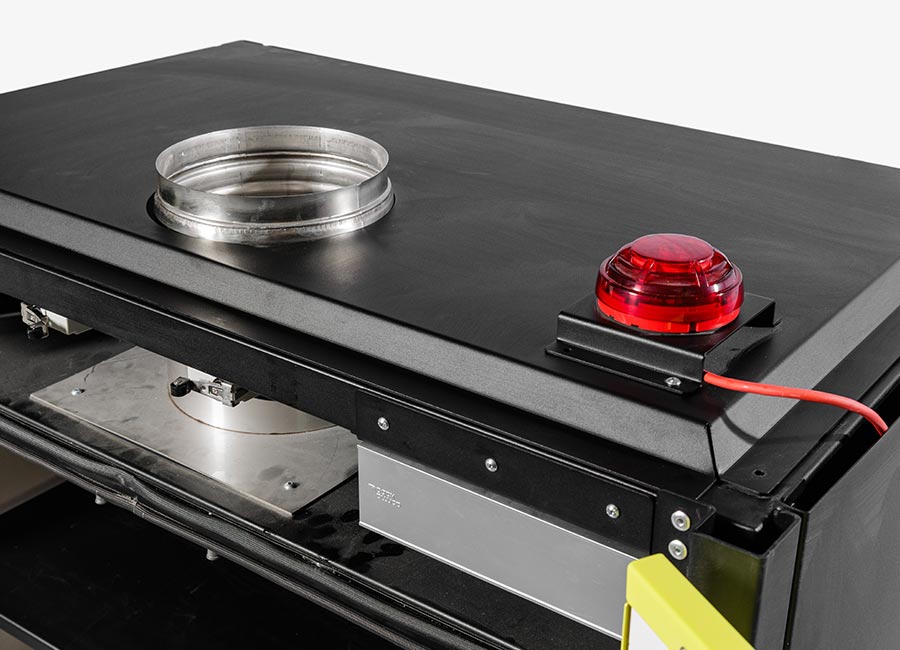

Pressure Relief System with Flame Arrestor
Self-Closing Doors with Multi-Point Locking System
Can Be Connected to Fire Alarm Systems

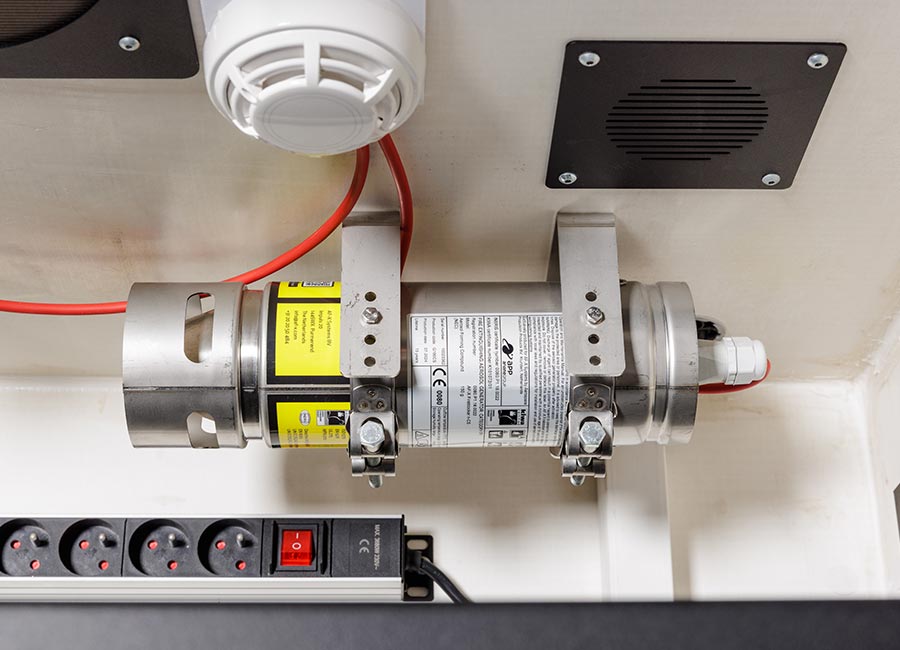

Optional Aerosol Fire Suppression System and Remote Monitoring Module

Ideal for Businesses with High Battery Storage Requirements

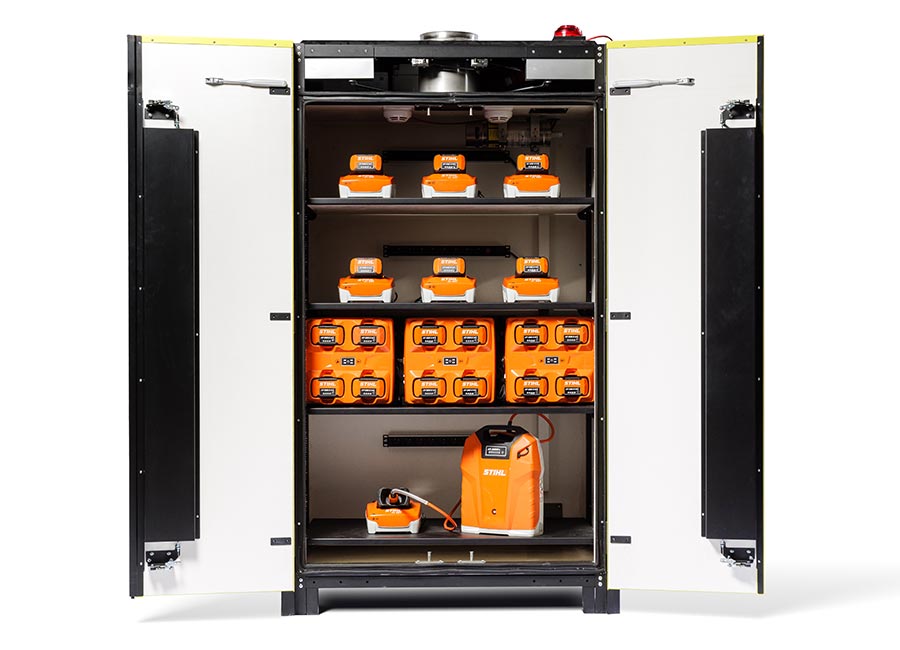

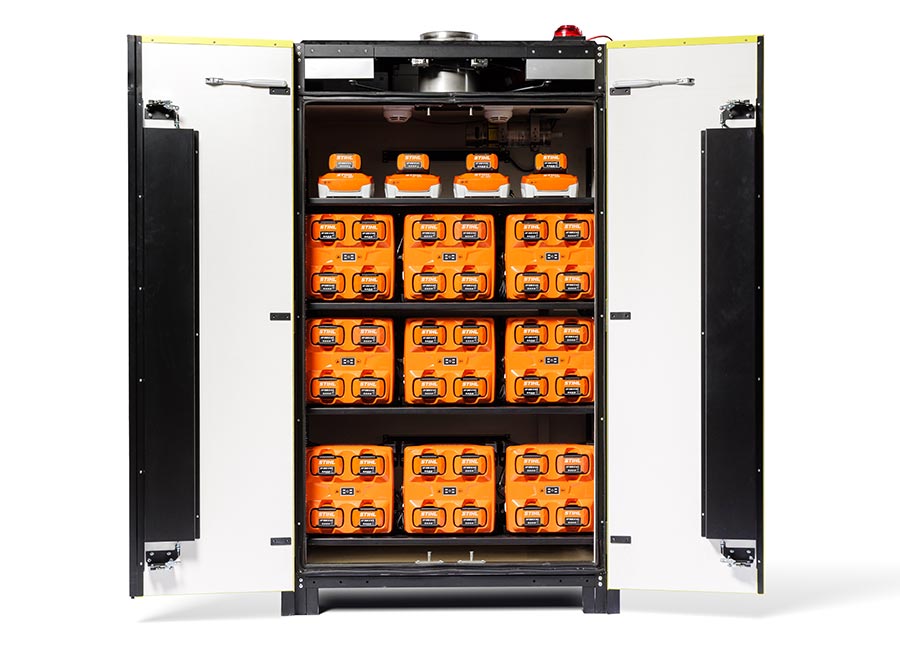

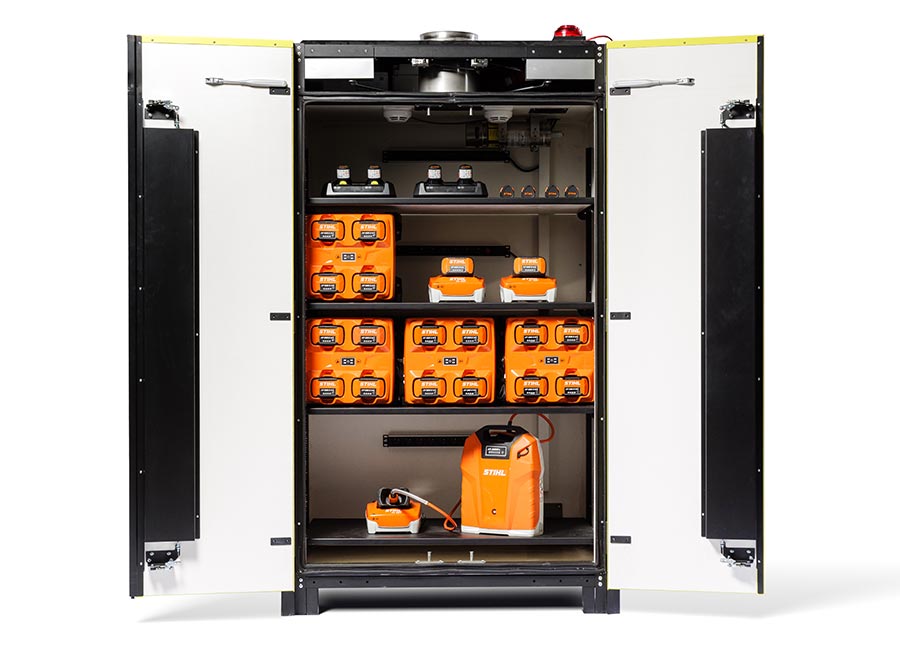

The LOXK2000 has been developed for organizations that charge and manage larger numbers of lithium-ion batteries on a daily basis. Its spacious interior design enables the organized storage and charging of numerous batteries within a centralized safety system. The battery cabinet is particularly suitable for:
