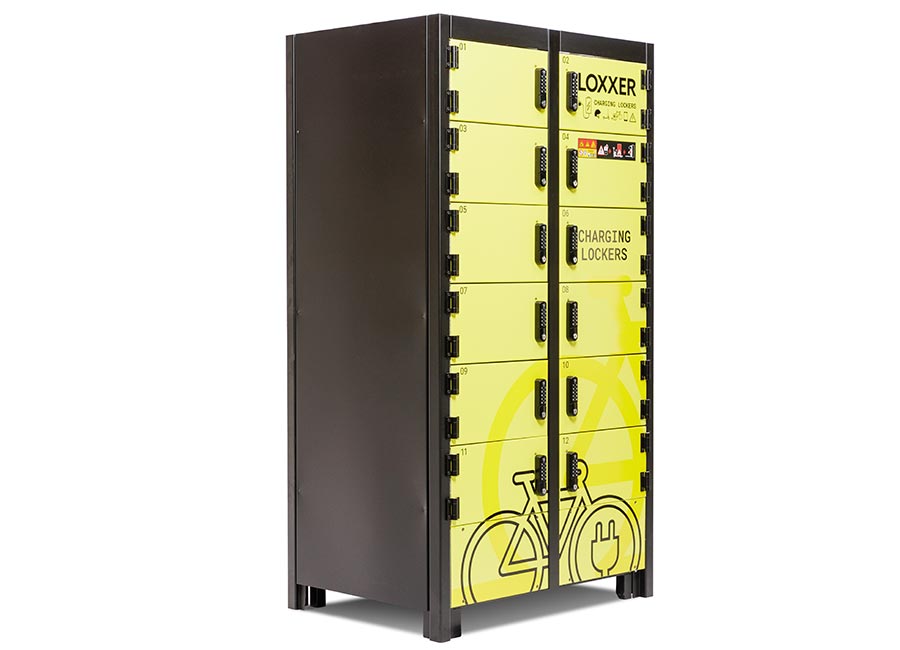

Lithium-Ion Battery Charging Locker System LOX12
The LOX12 battery charging locker system has been specifically designed for the safe storage and charging of lithium-ion batteries in multi-user environments. Twelve individually separated charging compartments provide a structured and secure solution for storing and charging e-bike batteries, e-scooter batteries, power tool batteries and other energy storage devices.
Each compartment can be individually locked and provides sufficient space for both the battery and charger. This makes the system ideal for businesses, schools, universities, mobility hubs and public institutions.
Why Choose a Lithium-Ion Battery Charging Locker System?
As the use of e-bikes, e-scooters, power tool batteries and mobile equipment continues to grow, so does the demand for safe and organized charging facilities. Conventional shelving or open charging stations often result in cable clutter, unclear ownership and an increased risk of theft.
A professional battery charging locker system provides organization, security and clear user allocation. Each user has access to their own charging compartment, allowing batteries to be stored securely while charging.
| Overall Dimensions | 1938 x 1042 x 765 mm (H x W x D) |
| Maximum Overall Height | 2015 mm |
| Weight | 400.0 kg |
| Standard Power Supply | 3-Phase 400 V + Neutral (16 A) |
| Alarm Sound Level | 94–106 dB(A) |
| Number of Lockers | 12 |
| Dimensions per Locker | 454 x 246 x 683 mm (W x H x D) |
| Fire Classification | A1 |
| Certification | CE Certified, VDMA 24994 Compliant |
| Fire-Resistant Wall Construction | EN 1364-1:2015 |
Key Benefits of the LOX12 Battery Charging Locker System
- 12 Individual Charging and Storage Compartments
- Individually Lockable Compartments
- Safe Charging of Lithium-Ion Batteries
- Ideal for Multi-User Environments

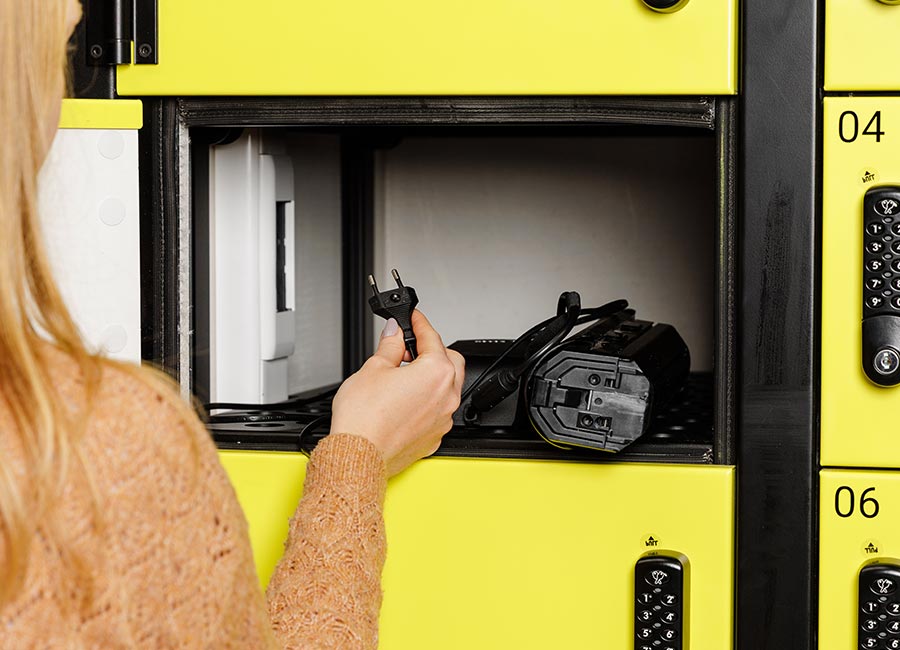

- Two Integrated Power Outlets per Compartment
- Smoke and Temperature Monitoring
- Audible and Visual Alarms
- Active Ventilation to Prevent Heat Build-Up
- Can Be Connected to Fire Alarm Systems
- Optional Aerosol Fire Suppression System Available
Ideal for E-Bikes, E-Scooters and Power Tool Batteries
The LOX12 is ideal for environments where multiple users need to regularly charge and store lithium-ion batteries. Thanks to the separated charging compartments, batteries can be clearly assigned to individual users or departments. Typical applications include:
- Companies with Bike Leasing Programs
- Office and Administrative Buildings
- Schools and Universities
- Public Sector Institutions
- Industrial and Manufacturing Companies
- Logistics Companies
- Workshops and Service Centers
- Mobility Hubs
- Hotels and Public Institutions
