WELDING PROTECTION · WELDING CURTAINS607.G1 Welding Curtain up to 600 °C
Lightweight and flexible industrial welding curtain for shielding work areas from flying sparks, welding spatter and thermal exposure.
607.G1 · INDUSTRIAL WELDING CURTAIN · UP TO 600 °C
Lightweight welding curtain for workstations and large-area protective partitions
INDUSTRIAL Basic

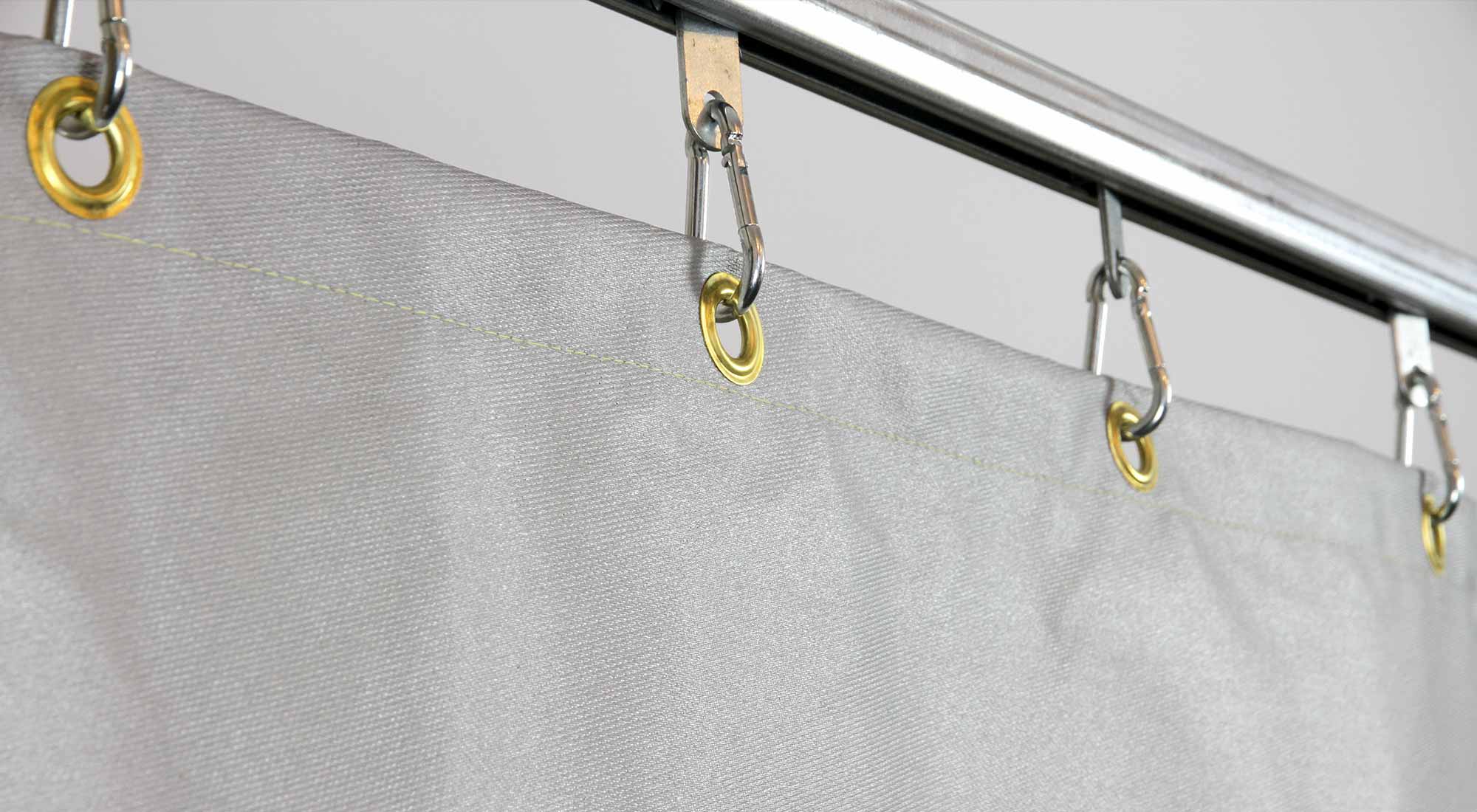

The 607.G1 welding and spark protection curtain is a lightweight and versatile protective solution for industrial welding, grinding, cutting and hot work. It is particularly suitable for the vertical shielding of welding workstations, machinery, production areas and larger work zones from flying sparks, welding spatter and thermal exposure.
The 607.G1 spark protection curtain is based on a GF glass fabric with a single-sided PU Alufix coating. With an area weight of approximately 700 g/m², the material combines lightweight, flexible handling with temperature resistance up to 600 °C.
Its comparatively low weight makes the 607.G1 particularly suitable for large-area and movable welding curtain systems. Dimensions, edge finishing and eyelets can be specified individually. On request, we supply the welding curtain as a complete system including curtain tracks, rollers and matching mounting components.
Configure the 607.G1 welding curtain with track and mounting system
Configure your individual 607.G1 welding and spark protection curtain directly online. Define multiple curtain positions, individual dimensions, edge finishing and eyelets to suit your application. If required, add matching curtain tracks and mounting components directly to the configuration. This creates a technically coordinated welding curtain system from a single source.
607.G1 welding curtain technical overview
- Base Fabric
- GF glass fabric
- Coating
- PU Alufix, single-sided
- Area Weight
- approx. 700 g/m²
- Color
- aluminum gray, matt
- Reaction to Fire
- non-combustible
- Temperature Resistance
- up to 600 °C
- Performance Level
- INDUSTRIAL – Basic
- Design
- custom-made welding curtain
- PFAS-Free
- Yes
- REACH Compliant
- Yes
Lightweight spark protection curtain for flexible and large-area welding protection systems
Technical and Functional Features
-
GF glass fabric for industrial welding, grinding and hot work
-
Single-sided PU Alufix coating for increased durability
-
Temperature resistant up to 600 °C
-
Approx. 700 g/m² area weight for easy handling and installation
-
Protection against flying sparks and welding spatter
-
Particularly suitable for vertical and large-area protective partitions
-
Custom dimensions, edge finishing and eyelets available
-
Available as a complete system solution with curtain track and mounting components
Typical Applications
-
Welding workstations in production and assembly halls
-
Partitioning of adjacent welding and work areas
-
Metal fabrication and welding operations
-
Mechanical and plant engineering
-
Protection of adjacent machinery and production areas
-
Maintenance and repair work
-
Production and logistics facilities
-
Industrial hot work applications
607.G1 spark protection curtain as a custom-designed curtain system
A welding curtain must not only match the application in terms of material performance. Its dimensions, mounting method, mobility and installation conditions also influence the function of the complete protection system. We therefore manufacture the 607.G1 spark protection curtain to suit your on-site requirements and, on request, supply a complete solution comprising a custom-made welding curtain, curtain tracks, curtain rollers and matching mounting components.
The required curtain positions and configurations can be assembled directly using our Welding Curtain Configurator .
The right welding curtain for your work area
Our specialists support you in designing your welding curtain system – from dimensions and fabrication to curtain tracks and mounting components. Alternatively, you can configure your individual solution directly using our online configurator.
Personal advice on product, configuration and application concept.
