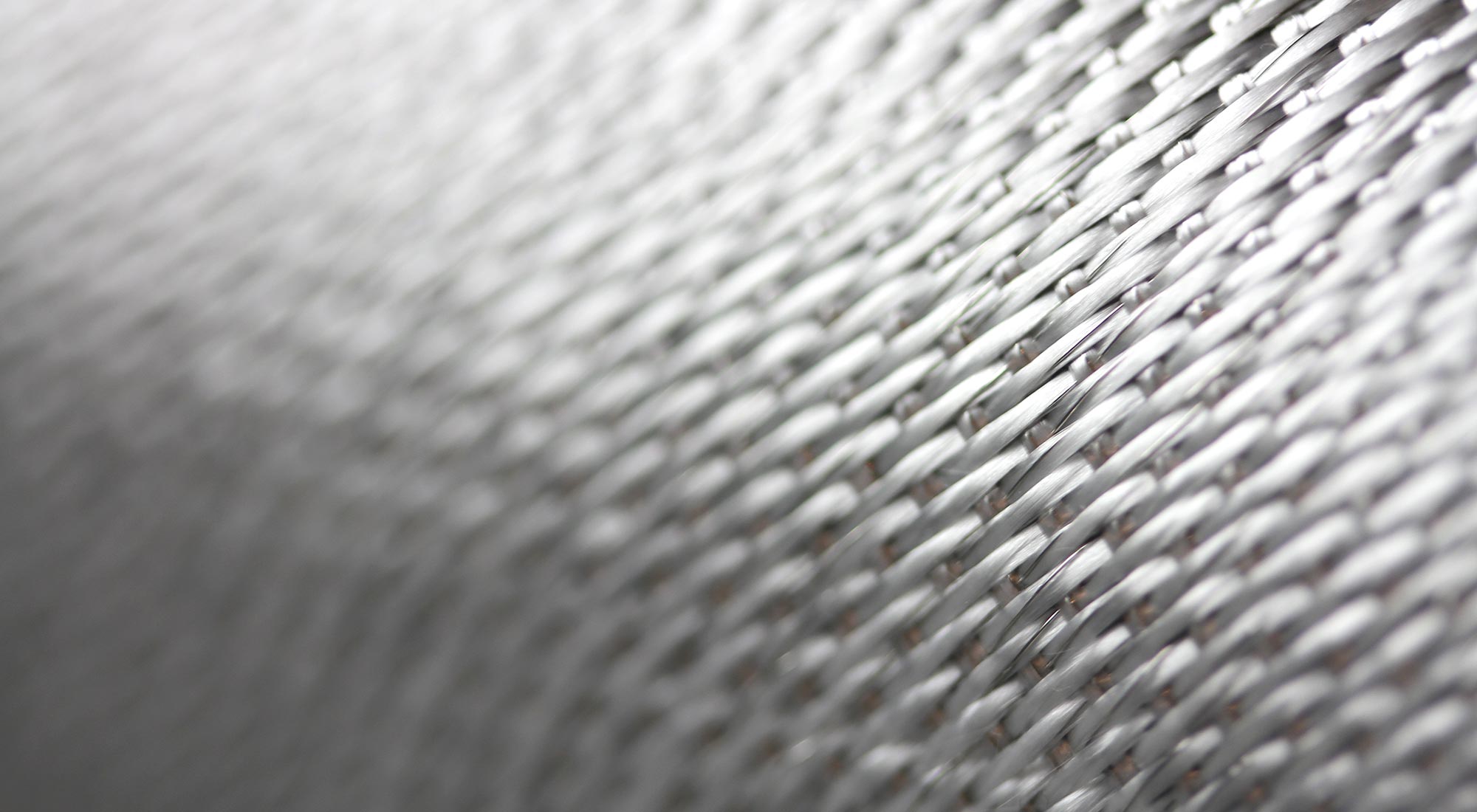

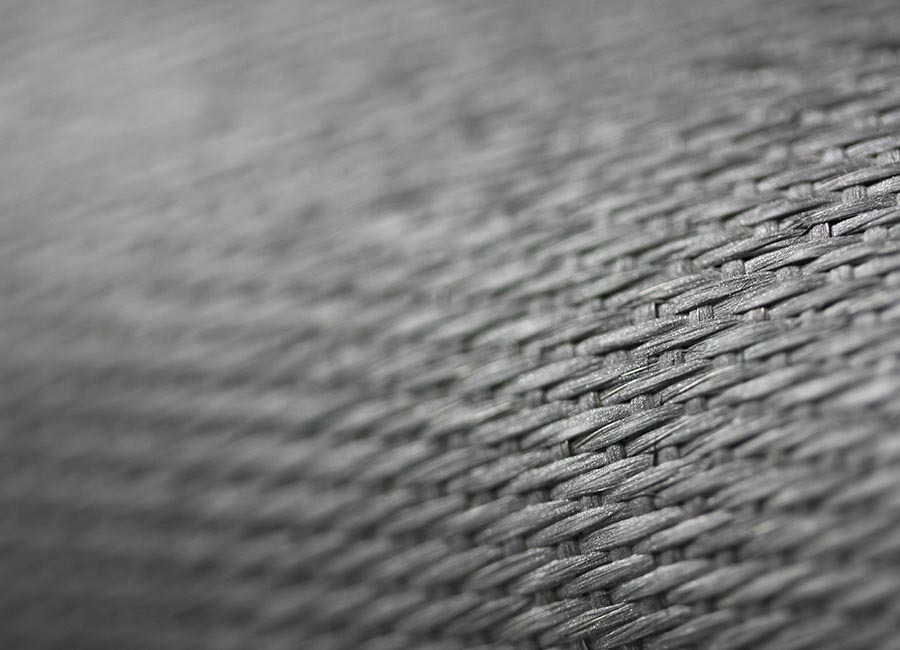

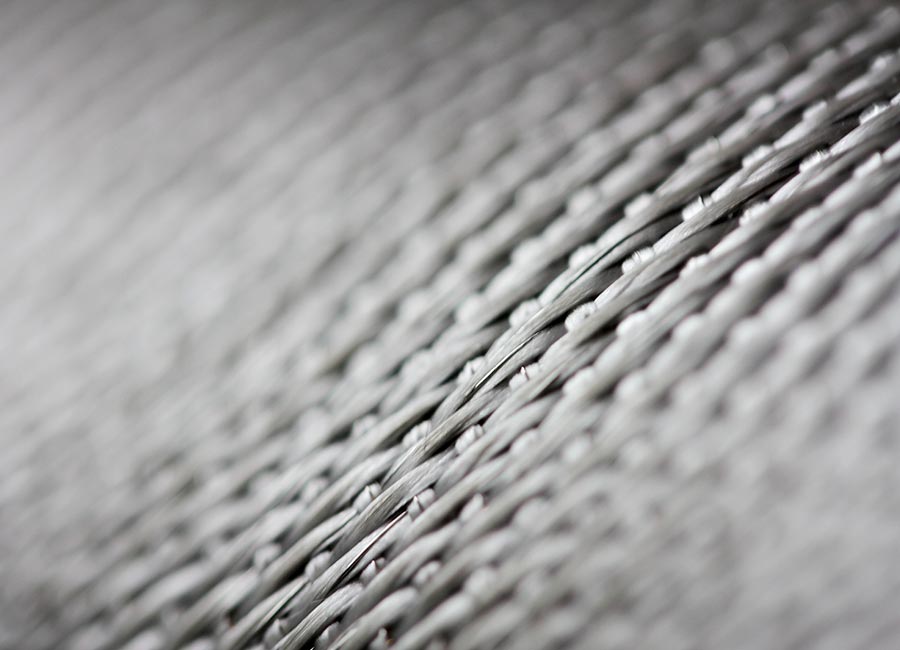

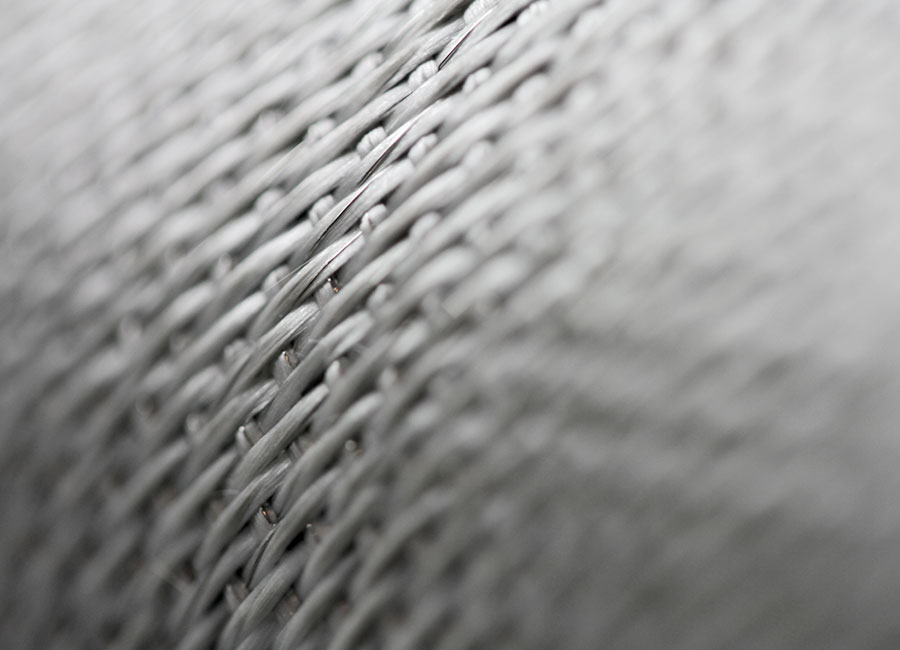

Glass Fabric with V4A Wire Reinforcement
Our high-performance glass fabrics with integrated V4A wire reinforcement and specialized coating deliver outstanding performance in demanding applications. The combination of reinforced fabric and functional coating ensures excellent mechanical stability, high temperature resistance, and exceptional durability – even under extreme operating conditions.
| Material | Glass fabric made from smooth (GF) or textured (GT) yarns |
| Coating | – PU-Alufix (G): For increased mechanical strength and protection – Calcium Silicate (HT): For high-temperature applications |
| Coating Options | Single-sided or double-sided coating |
| Manufacturing Qualities | 430 - 1000 g/m² |
| Manufacturing Widths | 1000 - 1550 mm |
| Temperature Resistance | 600 - 1000 °C |
High-Performance V4A Wire Reinforced Fiberglass Fabrics – Our Trusted Standard Grades
For information on additional grades or our customized coating options, feel free to contact us.
| Type | Structure | Temperature resistance (permanent | short-term) | Weave | Weight (incl. coating) | Standard Width | Data Sheet |
|---|---|---|---|---|---|---|
| GF660.V4A.G1 |
E-glass fabric (660 g/m²), reinforced with steel wire single-sided PU-Alufix | 800 °C | 1000 °C | Atlas / Satin | 720 g/m² | 1000 - 2000 mm | |
| GF660.V4A.G2 |
E-glass fabric (660 g/m²), reinforced with steel wire double-sided PU-Alufix | 800 °C | 1000 °C | Atlas / Satin | 740 g/m² | 1000 - 2000 mm | |
| GT740.V4A.HT |
E-glass fabric (660 g/m²), reinforced with steel wire double-sided Calcium-Silica HT-Finish | 750 °C | 1000 °C | Leinwand / Plain | 750 g/m² | 1000 mm | |
| GT1000.V4A.HT |
E-glass fabric (1000 g/m²) double-sided Calcium-Silica HT-Finish | 750 °C | 1000 °C | Leinwand / Plain | 1040 g/m² | 1000 mm | |
| GT1200.V4A.HT |
E-glass fabric (1200 g/m²) double-sided PU-Alufix | 750 °C | 1000 °C | Panama | 1260 g/m² | 1000 mm |
Technical Characteristics
- Extremely heat-resistant: Ideal for high-temperature and fire protection applications.
- Mechanically reinforced: V4A wire ensures high tear resistance and stability.
- PU-Alufix Coating: Enhances heat reflection and durability.
- Corrosion-resistant: Withstands moisture and aggressive environmental conditions.
- Versatile application: Perfect for industrial applications, fire protection systems, and thermal insulation.
- The excellent cut and slip resistance offers many advantages for further processing of these materials.
Application Examples
- Smoke Curtains: Effective barrier for controlling smoke and fire gases.
- Flame Protection Curtains: Protective curtains for industrial and commercial fire protection solutions.
- Heat Protection Blankets & Partitions: Designed for use in high-temperature environments.
- Fire and Heat Protection Cladding: Protection for machines, equipment, and sensitive components.
- Welding Protection Curtains: Spark- and heat-resistant partitions for workshops and manufacturing halls.
- Insulation and Sealing Material: Thermal insulation for pipelines, containers, and furnace cladding.
