S-TYPE Fire Containment Blanket for Electric Vehicles: Effective Protection Against Battery and Vehicle Fires

S-TYPE Fire Containment Blanket for Electric Cars
Back to Overview
S-TYPE Fire Containment Blanket for Electric Cars
S-TYPE Fire Containment Blanket for Electric Cars
S-TYPE Fire Containment Blanket for Electric Cars
S-TYPE Fire Containment Blanket for Electric Cars
S-TYPE Fire Containment Blanket for Electric Cars

S-TYPE Fire Containment Blanket for Electric Cars

The increasing prevalence of electric vehicles presents new challenges in the field of fire safety. In particular, thermal runaway events in lithium-ion batteries require specialized safety solutions. Our S-TYPE fire containment blanket for electric vehicles has been specifically developed to meet these demands – serving as an active and preventive measure for fire suppression and fire spread prevention in all phases of a vehicle fire.

Manufactured from high-purity mineral-based silica fabric with a double-sided vermiculite coating, the S-TYPE fire containment blanket offers continuous temperature resistance up to 1200 °C and can withstand short-term peak loads of up to 1600 °C. This makes it one of the most powerful fire blankets for electric vehicles worldwide.

What is a fire containment blanket for electric vehicles?

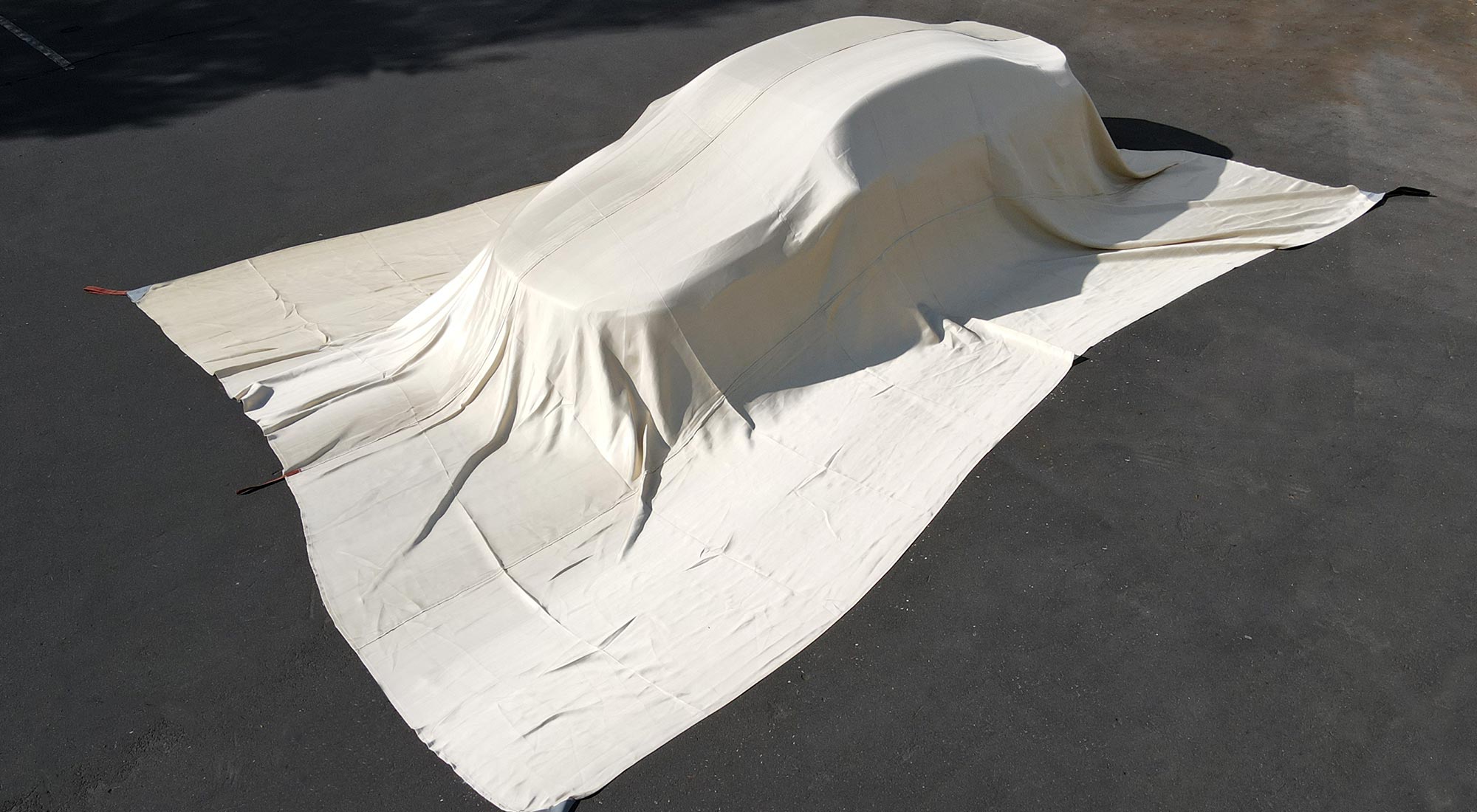

A fire containment blanket for electric vehicles is a specially developed fire protection blanket made of a high-performance, heat-resistant technical textile. It is used to safely cover and thermally isolate burning or damaged electric vehicles – especially in cases involving lithium-ion battery fires. Unlike conventional fire blankets, fire containment blankets are designed to withstand significantly higher and more sustained temperatures. At the same time, they enable the controlled release of pyrolysis gases generated during a thermal runaway event. This makes them a crucial tool for containing and controlling battery fires.

What do fire containment blankets for electric vehicles achieve?

Fire containment blankets for electric vehicles are a key safety tool for controlling and containing vehicle fires, particularly during thermal events such as lithium-ion battery thermal runaway. Within seconds, they create an effective thermal barrier around the entire vehicle, helping to reliably contain flames, sparks, and hot particles. This immediate enclosure not only significantly reduces heat development but also enables controlled release of hazardous pyrolysis gases. In an emergency, they provide valuable response time to initiate evacuations, secure the surrounding area, or coordinate further emergency measures – whether in a parking lot, underground garage, charging station, or on a ferry. The blanket protects nearby vehicles, infrastructure, individuals, and emergency personnel alike. By forming a thermally stable containment zone, the risk of uncontrolled fire spread is drastically reduced – even in sensitive environments with dense infrastructure or limited accessibility.

Especially at public charging stations, underground parking facilities, vehicle depots, and port terminals, fire containment blankets offer a simple and immediately deployable solution for minimizing risk – both as a preventive measure and in the event of an active fire.

MaterialSiO2 Silica Fabric
CoatingDouble-sided mineral vermiculite coating
Temperature resistanceup to 1200 °C
Short-term peak loadup to 1600 °C
Fire behaviorNon-combustible, tested according to DIN EN 13501-1
Electrical behaviorNon-conductive, tested according to DIN 54345-1
ConstructionConstruction according to DIN SPEC 91489
Image 1 Image 2

Standard dimensions and set options of the S-TYPE Fire Containment Blanket

Additional sizes and custom versions are available upon request.

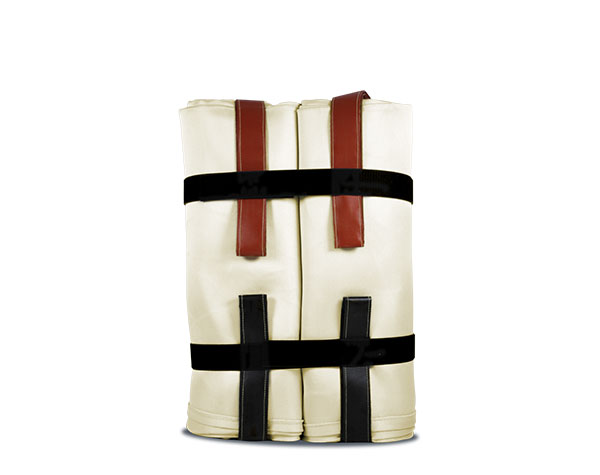

S-TYPE Car Fire Blanket, 6 x 8 m
S-TYPE Car Fire Blanket, 6 x 8 m
Fire Containment Blanket 6 x 8 m
Suitable for all standard passenger cars, including SUVs.
  • Size: 6 x 8 m (48.00 m²)
  • Weight: approx. 29.80 kg
S-TYPE 6 x 8 m
S-TYPE Car Fire Blanket, 7.5 x 9 m
S-TYPE Car Fire Blanket, 7.5 x 9 m
Fire Containment Blanket 7.5 x 9 m
Suitable for large SUVs, compact vans, and multi-purpose vehicles (MPVs).
  • Size: 7.5 x 9 m (67.50 m²)
  • Weight: approx. 41.85 kg
S-TYPE 7,5 x 9 m
S-TYPE Car Fire Blanket, 9 x 10 m
S-TYPE Car Fire Blanket, 9 x 10 m
Fire Containment Blanket 9 x 10 m
Suitable for transporters and minibuses.
  • Size: 9 x 10 m (90.00 m²)
  • Weight: approx. 55.80 kg
S-TYPE 9 x 10 m

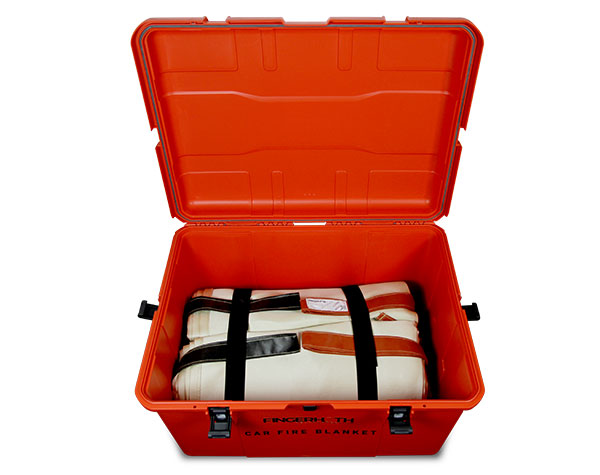

Car Fire Blanket with Trolley

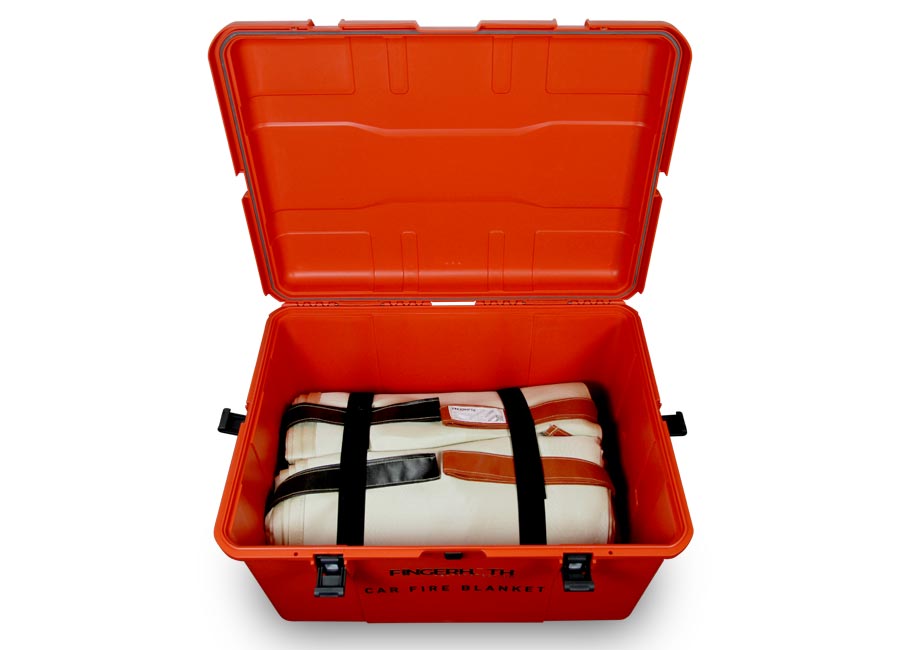

Car Fire Blanket + Trolley
Fire Containment Blanket + Suitcase (Trolley)
Fire Containment Blanket inclusive Trolley (XL).
  • Ideal for use in workshops, dealerships, and EV charging environments.
  • Available as a set with fire containment blankets in sizes 6 × 8 m, 7.5 × 9 m, and 9 × 10 m.
Fire Containment Blanket + Suitcase (Trolley)
Car Fire Blanket with PVC-Bag

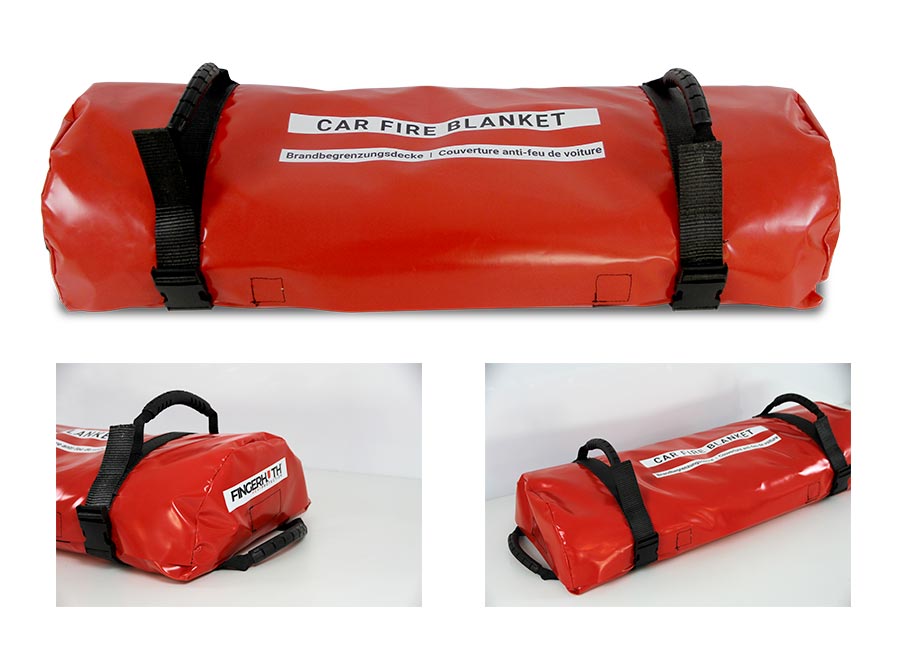

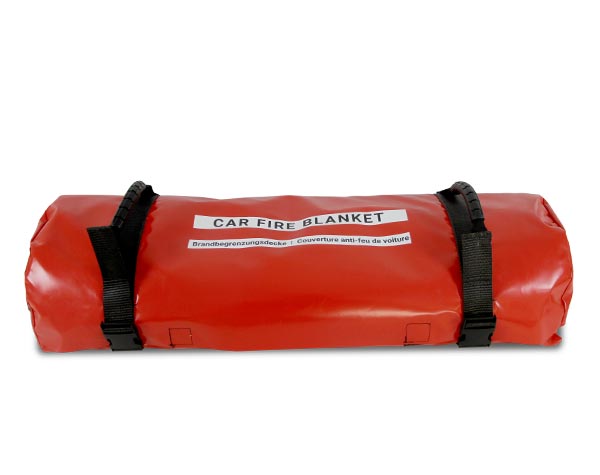

Car Fire Blanket + PVC-Bag
Fire Containment Blanket + PVC-Bag
Fire Containment Blanket inclusive PVC Deployment Bag.
  • Designed for use by fire services, police, civil protection units (THW), and military forces.
  • Available as a set with fire containment blankets in sizes 6 × 8 m and 7.5 × 9 m.
Fire Containment Blanket + PVC-Bag

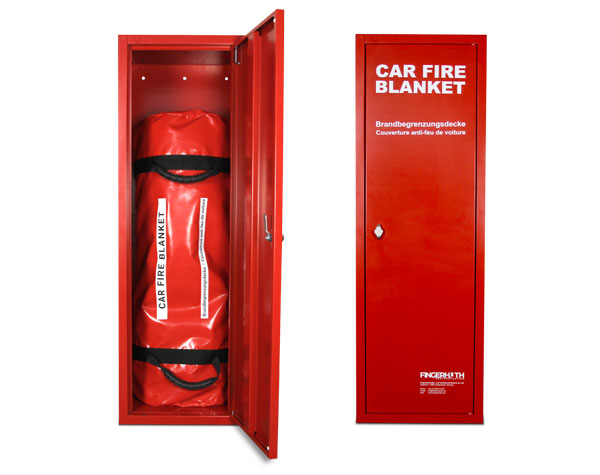

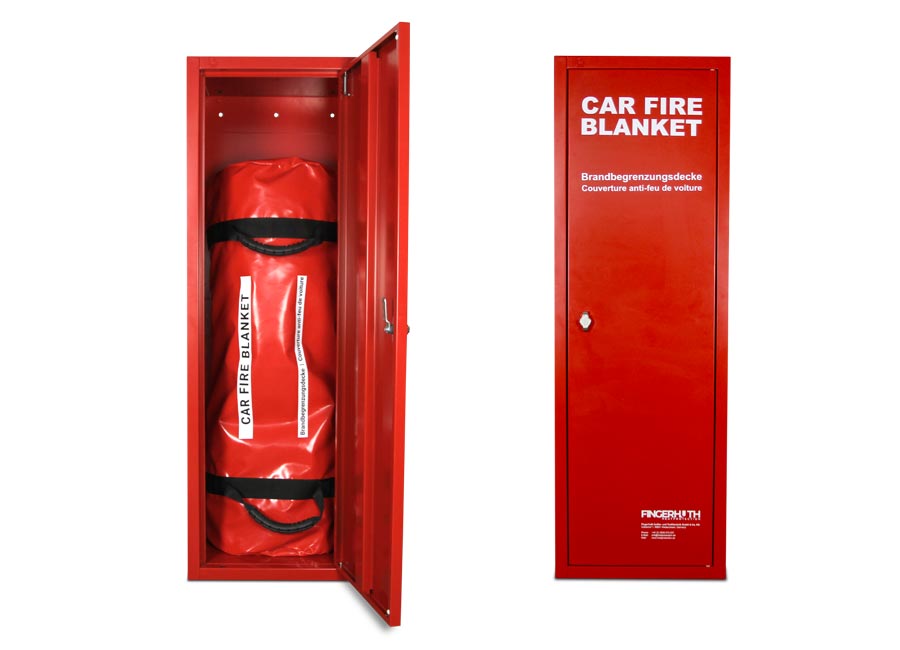

Car Fire Blanket with PVC-Bag and Wall Cabinet
Car Fire Blanket + PVC-Bag + Wall Cabinet
Fire Containment Blanket + PVC-Bag + Wall Cabinet
Fire containment blanket with PVC Deployment Bag and Wall-Mounted Cabinet.
  • Designed for wall mounting and the secure storage of fire containment blankets in PVC deployment bags.
  • Available as a set with fire containment blankets in sizes 6 × 8 m and 7.5 × 9 m.
Car Fire Blanket + PVC-Bag + Wall Cabinet

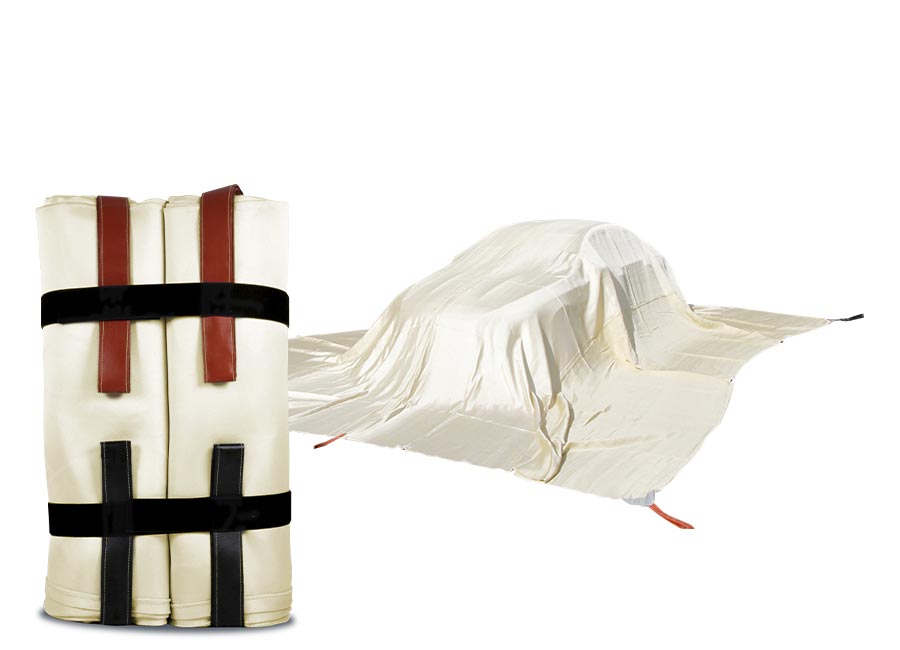

S-TYPE Fire Containment Blanket for Electric Cars

The S-TYPE fire containment blanket enables effective isolation and fire protection for electric cars, electric vehicles, and lithium-ion devices, with temperature resistance up to 1200 °C.

Extremely temperature-resistant

Can withstand temperatures up to 1200 °C, briefly even higher.

Delivered ready for use

Our blankets are delivered ready for use, including a multilingual application description.

Rapid fire isolation

Rapid fire isolation within seconds, thanks to the special Z-folding technique.

Maintenance-free

Our fire containment blankets are maintenance-free and imperishable.

S-TYPE Fire Containment Blanket for Electric Cars

Tested Quality

Tested with an electric vehicle with a battery capacity of 120 kWh and nearly 100% charge volume for a duration of 60 minutes.

Environmentally friendly and harmless

Does not contain any substances harmful to humans and the environment. Fires can be fought without additional extinguishing agents.

Service and Consulting

Enjoy first-class service, targeted consulting, and maximum flexibility directly from the manufacturer.

Video Facade Video Preview

Technical Characteristics

  • The S-TYPE fire containment blankets are made from high-temperature resistant silica fabric with a double-sided vermiculite coating and achieve a high temperature resistance of 1200 °C.
  • The fire containment blanket allows for automatic, controlled venting of pyrolysis gases directly through the fabric structure, thereby preventing ballooning and minimizing the risk of dangerous gas accumulation under the blanket. Manual gas regulation is not necessary.
  • The fire containment blanket is resistant to many chemical substances, including oil and water. This property ensures that it remains reliable under various conditions without losing effectiveness.
  • Developed in Germany, in collaboration with fire departments and the automotive industry, our fire containment blankets are 100% made in Germany.
  • Our fire containment blankets are made exclusively with specially double-covered fire protection seams made from high-tensile, flame-retardant, and steel-reinforced Kevlar yarn.
  • Fire Class A1, according to DIN EN 13501-1.
  • Construction in accordance with DIN SPEC 91489.
  • The fire containment blanket is equipped with four handle loops—two red and two black. The red loops indicate the direction of use.
  • Depending on the fire load, the blankets can be reused multiple times.

Application Examples

  • Application in Vehicle Fires: In case of fires involving electric vehicles (EVs) or other vehicles, to control the spread of the fire and ensure the safety of the surrounding area.
  • Parking Lots: In particular, the high vehicle density in parking garages and parking lots poses a significant risk of fire spreading. Fire containment blankets can prevent flames from spreading to neighboring vehicles.
  • Car Dealerships: Fire containment blankets provide effective preventive fire protection for car dealerships with a portfolio of electric vehicles.
  • Gas Stations and Charging Stations: Fire containment blankets should be easily and quickly accessible at charging stations and gas stations to quickly contain and control a fire in the event of a lithium battery-powered vehicle fire.
  • Ferries: On ferries, it is crucial to quickly isolate burning vehicles to prevent flames from spreading to other vehicles and to minimize smoke development. When transporting electric vehicles, fire containment blankets should be positioned for easy access.
  • Auto Repair Shops: Electric cars with an electronic defect or those involved in an accident can spontaneously ignite even days later. Repair shops servicing electric vehicles should position a fire containment blanket near workstations for easy access.

Fire Containment Blankets

Dimensions Size Weight Order Number Price
6 x 8 m 48,00 m2 29,80 kg B6080-S
7.5 x 9 m 67,50 m2 41,85 kg B7590-S
9 x 10 m 90,00 m2 55,80 kg B9100-S

Fire Containment Sets (Fire Containment Blanket + Transport and Storage Equipment)

Dimensions Contains Order Number Price
6 x 8 m S-TYPE Fire Containment Blanket 6 x 8 m + Trolley B6080C8644-S
6 x 8 m S-TYPE Fire Containment Blanket 6 x 8 m + PVC tarpaulin bag B6080T1450-S
6 x 8 m S-TYPE Fire Containment Blanket 6 x 8 m + PVC tarpaulin bag + Locker B6080W1960-S
7.5 x 9 m S-TYPE Fire Containment Blanket 7.5 x 9 m + Trolley B7590C8644-S
7.5 x 9 m S-TYPE Fire Containment Blanket 7.5 x 9 m + PVC tarpaulin bag B7590T1450-S
7.5 x 9 m S-TYPE Fire Containment Blanket 7.5 x 9 m + PVC tarpaulin bag + Locker B7590W1960-S
9 x 10 m S-TYPE Fire Containment Blanket 9 x 10 m + Trolley B9100C8644-S
